XPS Wall Mount Galvanized Hardware – 50" Rail, 25 Holes, 4 Plates

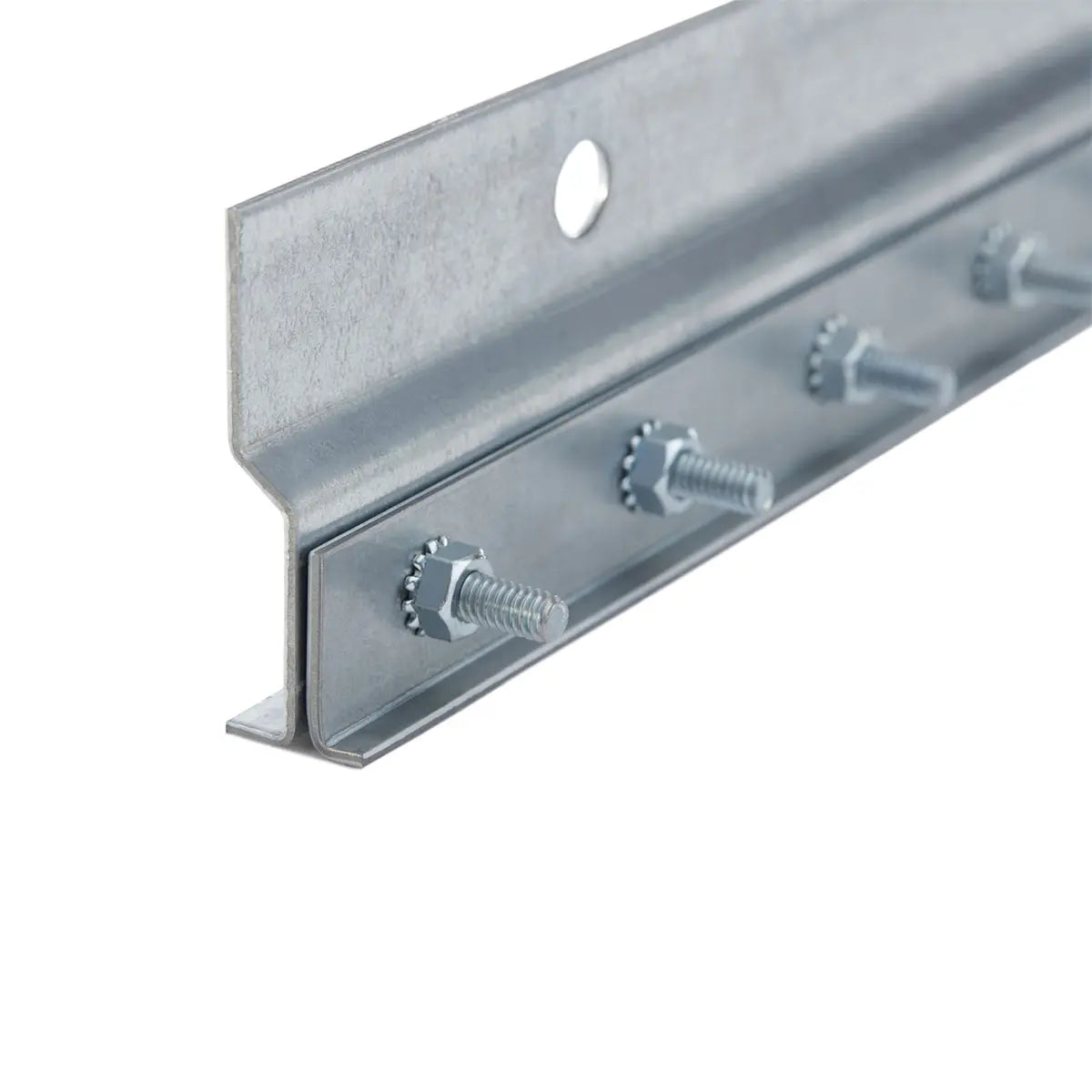

The XPS Wall Mount Galvanized Hardware Kit provides a strong, rust-resistant mounting solution for PVC strip curtains in warehouses, loading docks, cold storage, and industrial facilities. Constructed from heavy-duty galvanized steel, this 50" mounting rail includes 25 pre-drilled holes and 4 quick-change plates, allowing for fast strip replacement without removing the entire bar.

Designed for efficiency, the modular plate system minimizes downtime and ensures long-lasting performance in high-traffic areas.

Key Features & Benefits

• Heavy-Duty Galvanized Steel – Built to resist corrosion and withstand industrial use.
• Standard 50" Rail – Includes 25 evenly spaced holes for secure mounting.
• Quick-Change Plate System – 4 plates allow strips to be swapped without removing the full bar.
• Easy Wall-Mount Design – Installs directly to walls, door frames, or support structures.
• Modular Sizing – Multiple rails can be combined to fit wider openings.

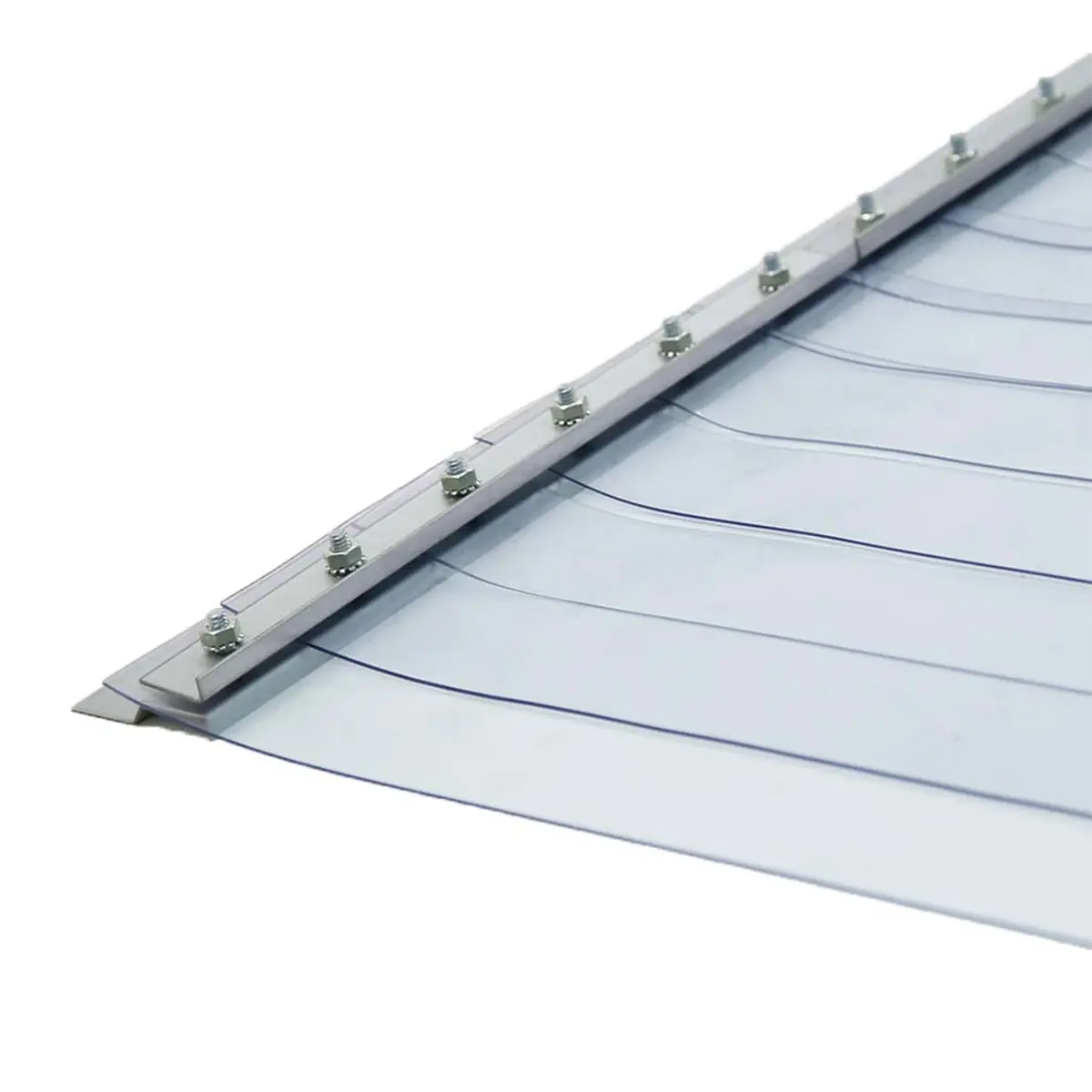

• Universal Fit – Compatible with most PVC strip curtain rolls.


Installation Guidance for Standard Warehouse Doors

• 8 ft wide door (96") → 2 rails (100" total, trim to fit).
• 9–10 ft wide door (108"–120") → 3 rails.
• 12 ft wide door (144") → 3 rails (overlap or trim).
• Rule of thumb: Rails needed = Ceiling (Door Width ÷ 50").

Each rail comes with 25 holes & 4 plates. For example:

• A 2-rail setup = 50 holes, 8 plates.
• A 3-rail setup = 75 holes, 12 plates.

Purchase Options

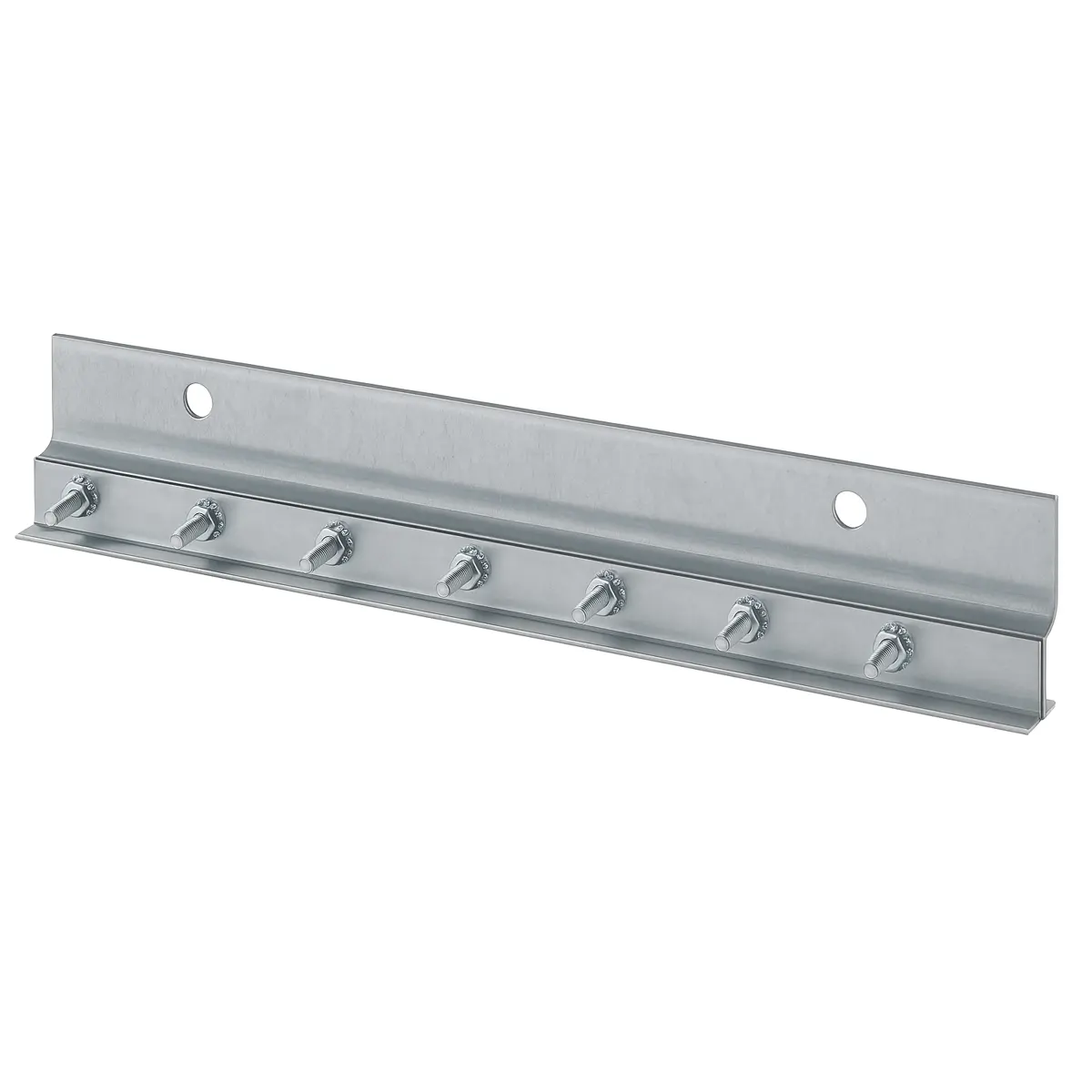

• Single Rail (1 pack) – 50" rail with 25 holes & 4 plates.

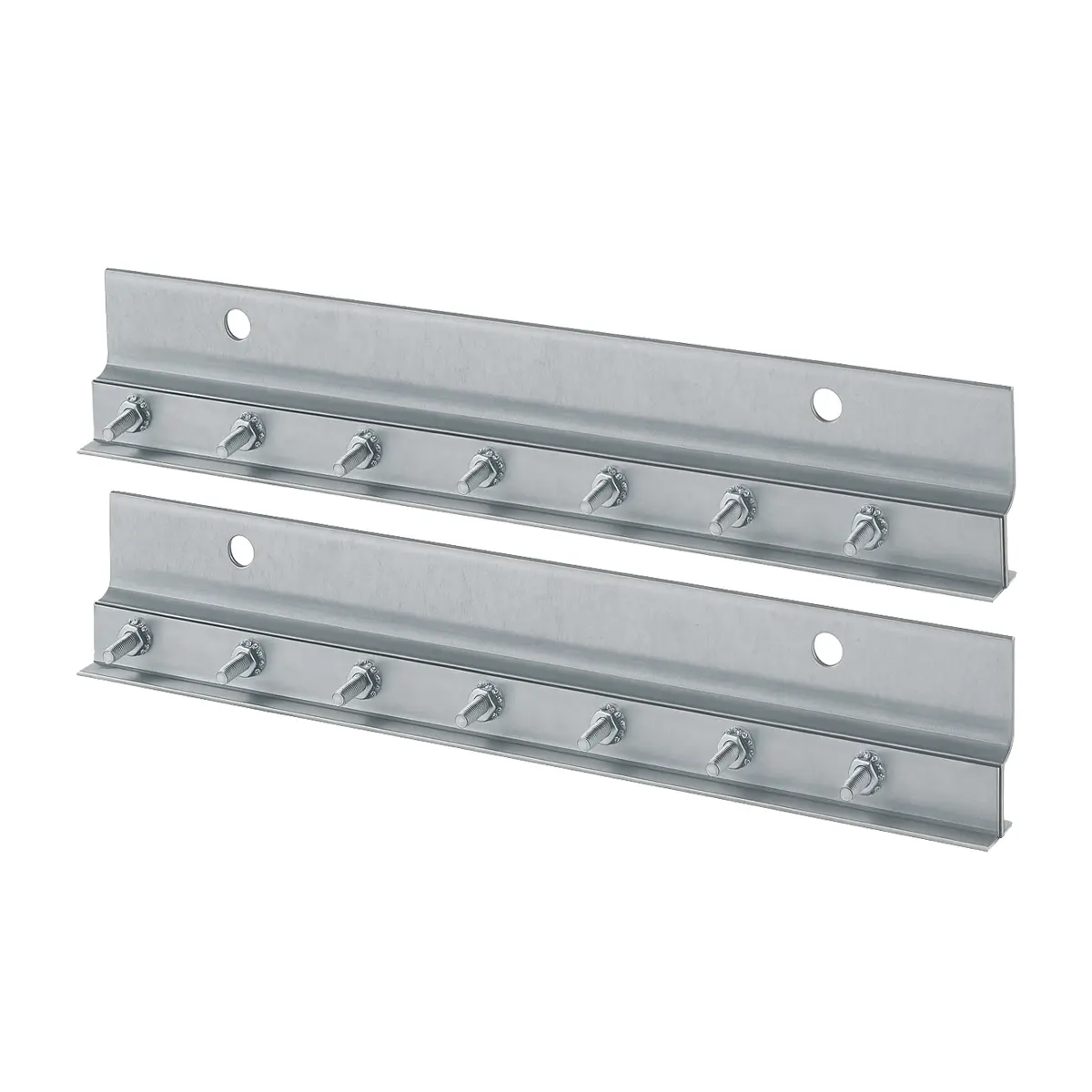

• Double Rail (2 pack) – 100" total coverage, 50 holes & 8 plates.
