CPS AC750 True-RMS Digital Clamp Meter

The AC750 is a Multi-Functional AC/DC Digital Clamp Meter.

$137.12
 per
Shipping calculated at checkout.
Spend $50.00 to FREE SHIPPING
FREE SHIPPING on this item

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

Free shipping on orders $50+ to the lower 48 states. Alaska, Hawaii, Puerto Rico and U.S. territories ship at standard rates.

Guaranteed safe checkout

Product Description

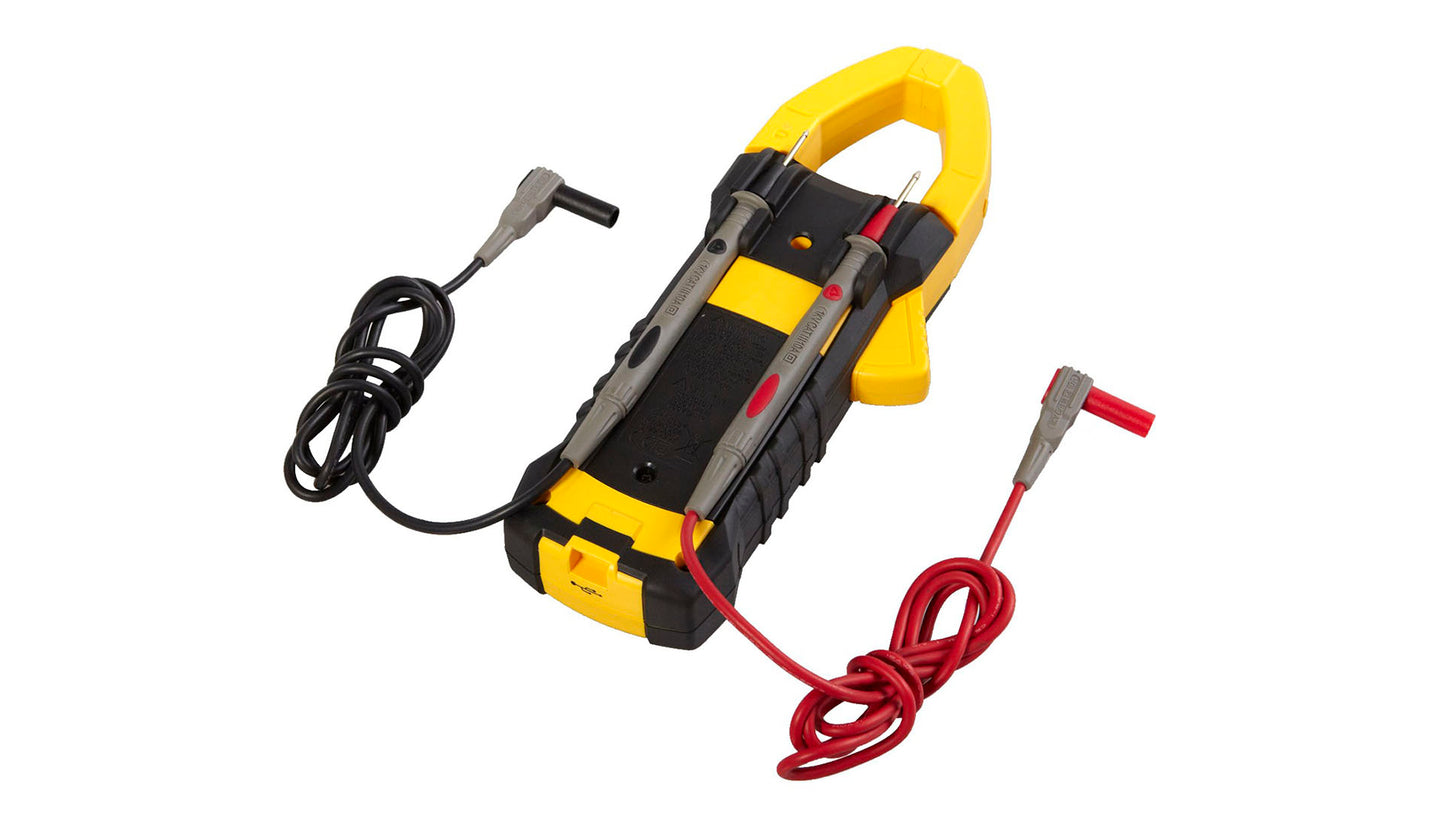

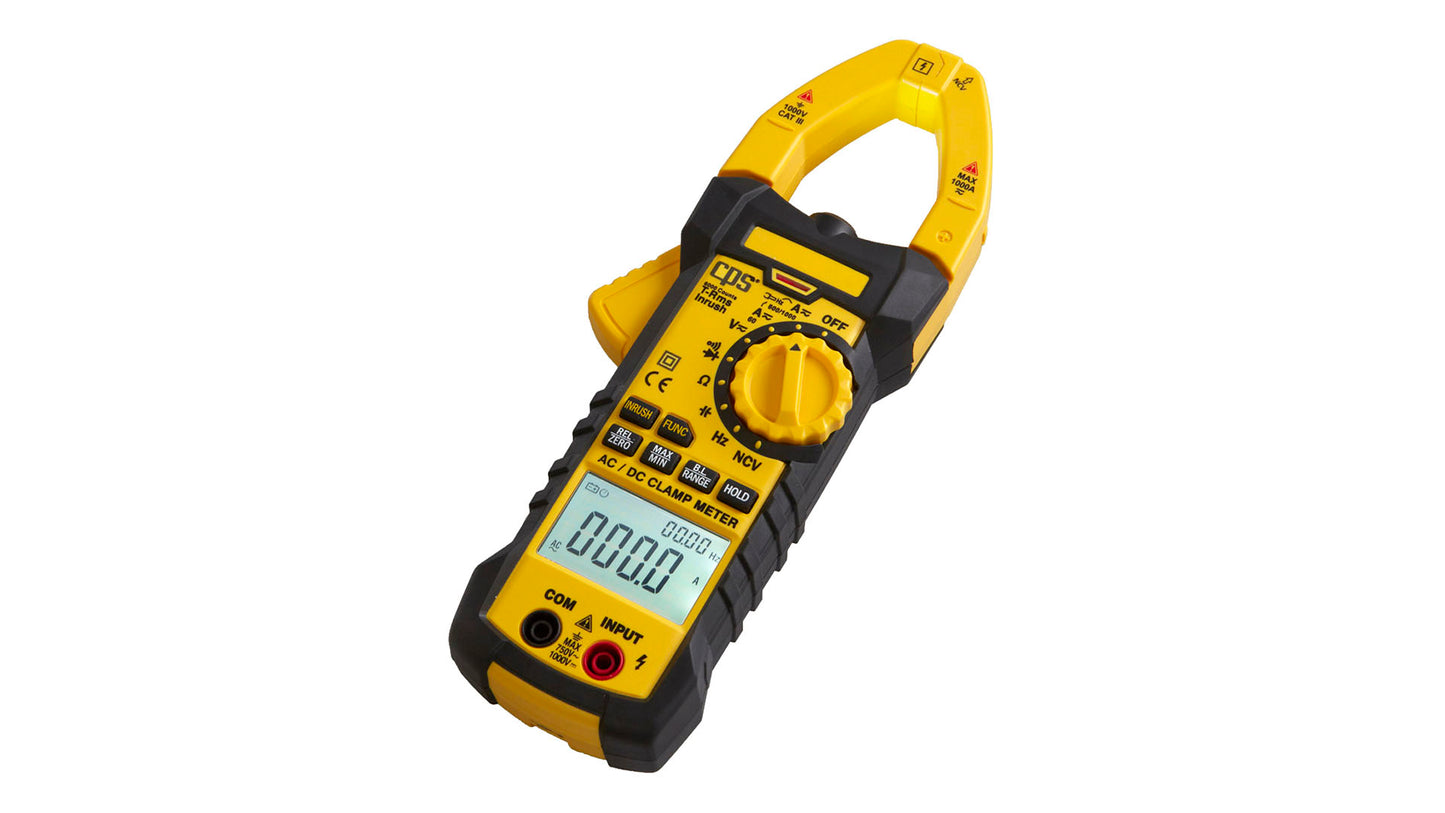

CPS AC750 True-RMS Digital Clamp Meter

The AC750 is a Multi-Functional AC/DC Digital Clamp Meter. The AC750 Multimeter hosts an array of enhanced features such as the ability to capture True Inrush measurements, Non-Contact Voltage Detection.

Features and Benefits

  • Versatile for testing AC/DC voltage, AC/DC current, resistance, and frequency.
  • True RMS AC measurement.
  • Max. / Min. value measurement.
  • Audible continuity and diode test.
  • Non-contact voltage detection.
  • Integrated clamp light and LCD backlight.
  • Auto zero key for DCA measurement.
  • Auto/Manual range, auto power-off.
  • Secondary injection molded case, safety as per IEC1010 CAT.III 600V.

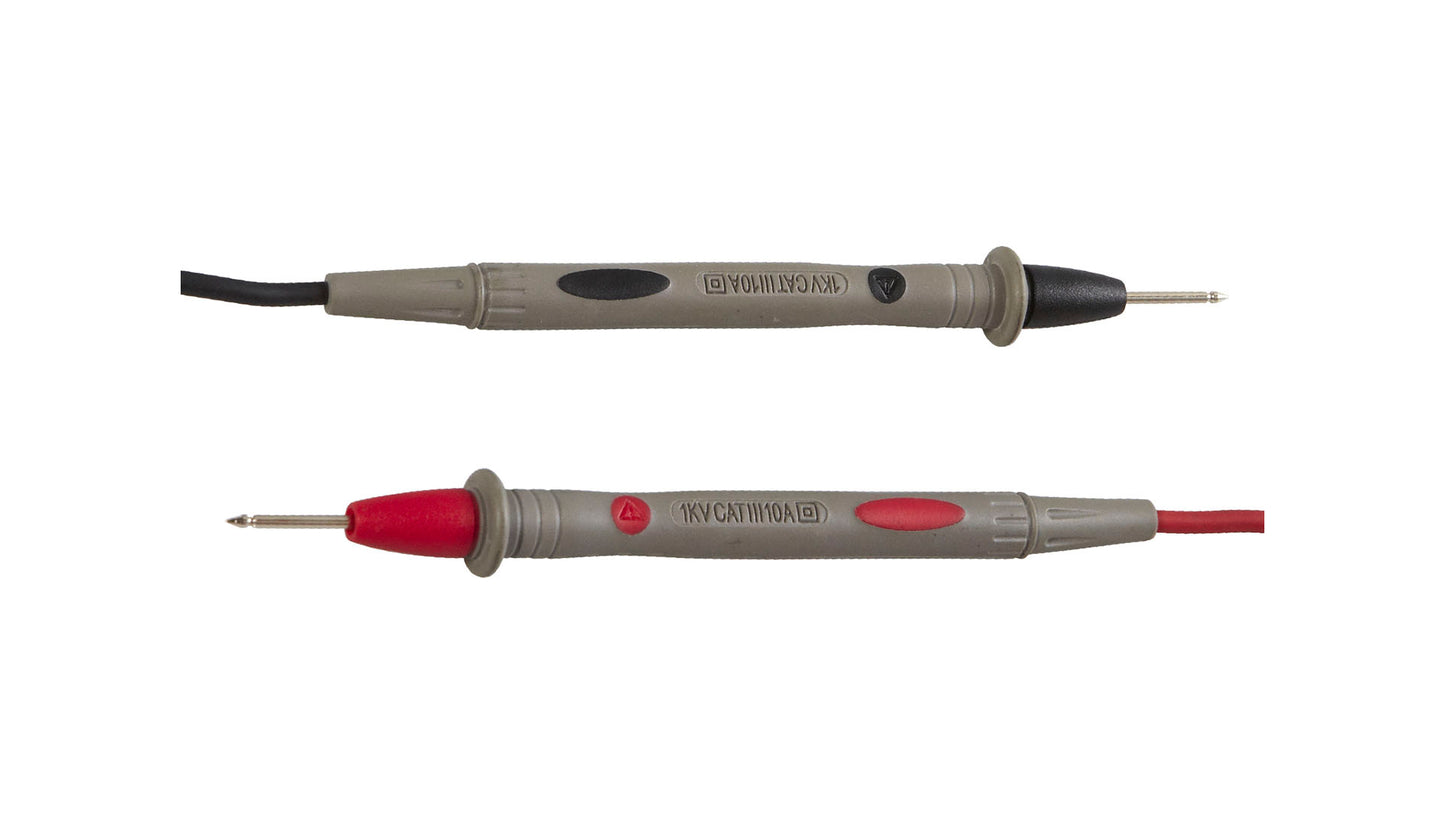

  • Includes: DMXTL CAT 3, 1000V test leads.

Additional Information

CPS Products’ refrigeration tools are manufactured to stringent industry standards. They are designed and built to provide a quality solution for many HVAC applications.

Product Manual Download

View full details
CPS AC750 True-RMS Digital Clamp Meter image 0

CPS AC750 True-RMS Digital Clamp Meter

$137.12
 per
At a Glance

Product Highlights

Technical Specifications

Full specifications

  • Maximum Input Current: 1000A AC; 1000A DC
  • Maximum Input Voltage: 750V AC (RMS); 1000V DC
  • AC Volts: 6mV/600mV/6V/60V/600V/750V (+/- 0.6% reading); 750V (+/-0.8% reading)
  • DC Volts: 6mV/600mV/6V/60V/600V/1000V (+/- 0.5% reading); 1000V (+/-0.8% reading)
  • AC Amps: 60/600/1000 (+/- 2% reading)
  • DC Amps: 60/600/1000 (+/- 2% reading)
  • OHMs: 600/6K/60K/600K/6M/60M (+/- 2% reading)
  • Frequency (Through Jaw Clamp): 99.99 Hz to 999.9 Hz
  • Frequency (Through Mode V): 99.99 Hz to 999.9 Hz
  • Frequency (Through Mode HZ/DUTY): 99.99 Hz to 999.9 Hz
  • Measuring Range Overload Protection: Yes (Full Range)
  • Sampling Rate: Approx. 3 times/sec.
  • LCD Display Auto-Off: After 15 minutes (if no operation)
  • Test Leads (Red, Black): 39" (1 m), Included
  • Battery Undervoltage Indication Display shows (+ -)
  • Polarity Indication: Automatic ("-" = negative polarity)
  • Display Indication (Exceeds Max Range): "OL" or "-OL"
  • Temperature Coefficient: <0.1 X accuracy/°C
  • Clamp, Max Opening: 1.6" (42 mm)
  • Full measuring range overload protection: Yes
  • Battery: One 9V DC (Included)
  • Operation Temperature: 32°F~122°F (0°C ~ 50°C)
  • Storage Temperature: -14°F~122°F (-10°C ~ 50°C)
  • Size (H x W x D): 9.4˝ x 1.9˝ x 3.6˝ (238 x 50 x 92 mm)
  • Weight (Including Battery): 0.92 lb (420 g)
  • Warranty:1 Year
  • Country of Origin (subject to change): United States
