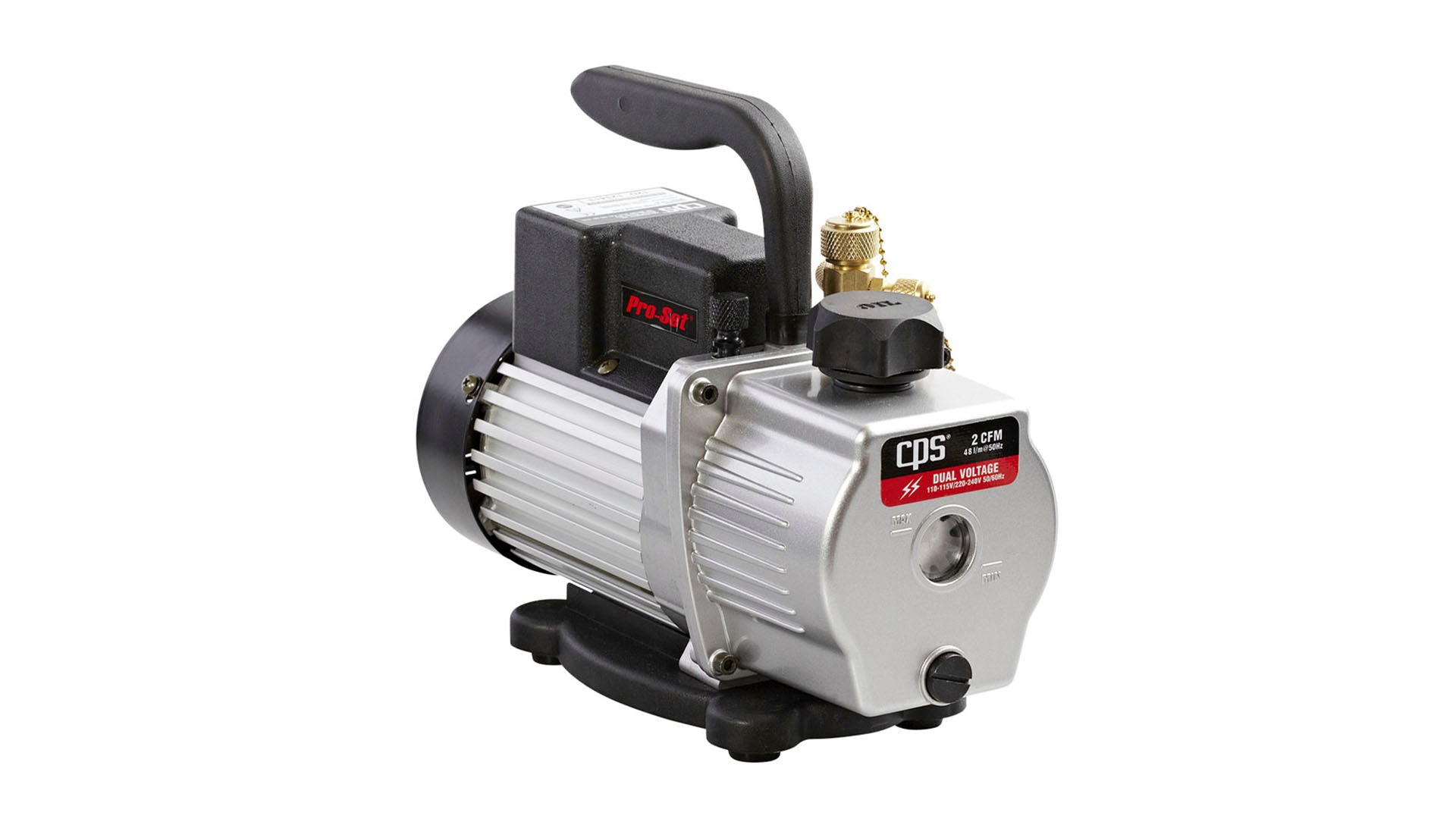

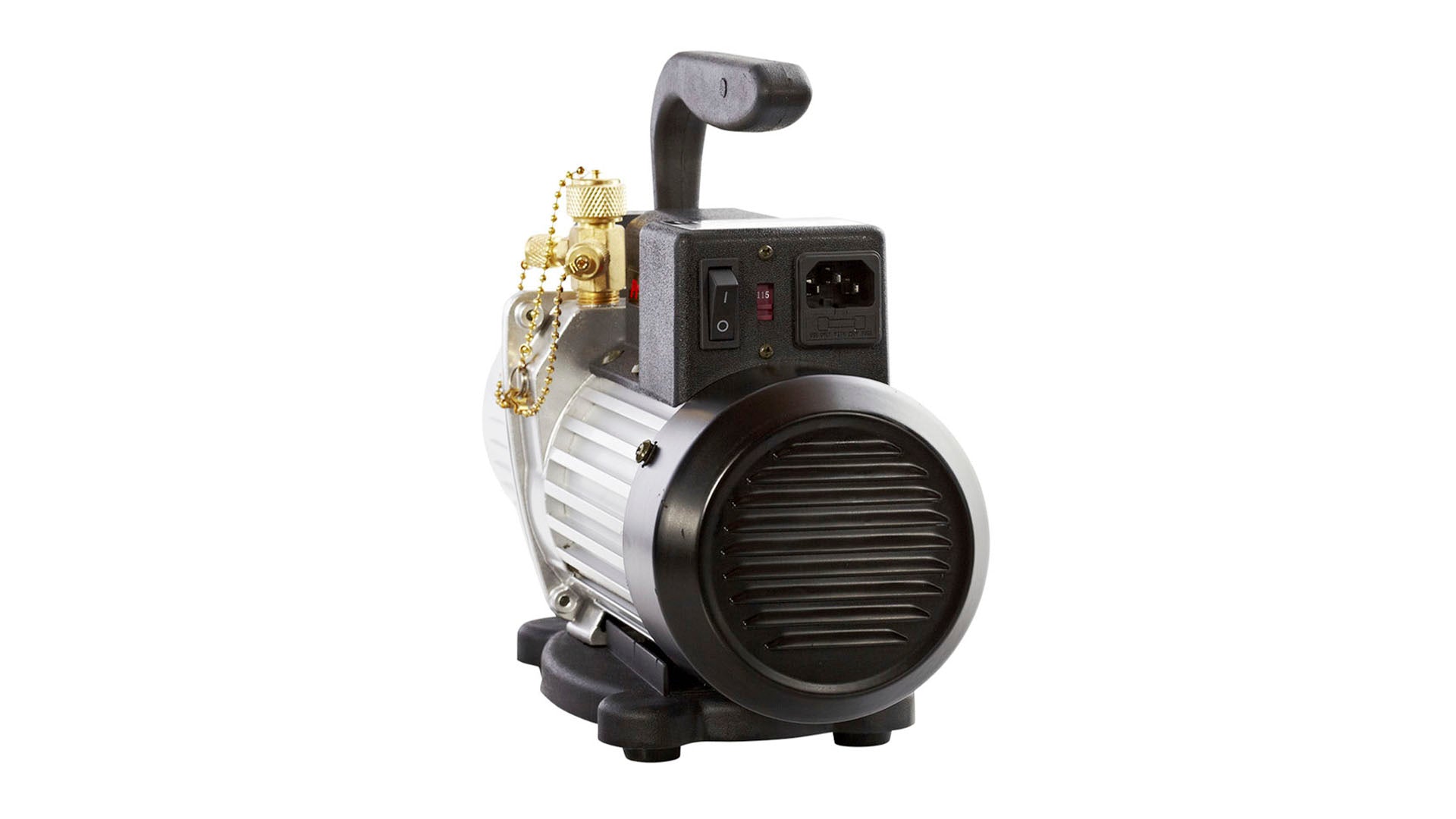

CPS VP2D | Pro-Set® 2 CFM Vacuum Pump

CPS VP2D | Pro-Set® 2 CFM Vacuum Pump

The CPS VP2D Pro-Set 2 CFM vacuum pump is designed for efficient evacuation of HVAC and refrigeration systems. Its oil-lubricated, single-stage design delivers a 2 CFM flow rate and a 50-micron ultimate vacuum, ensuring moisture and non-condensable are removed quickly.

Furthermore, the robust cast-aluminum housing and reinforced motor mount provide long-term durability in demanding field environments. Additionally, the integrated handle and compact footprint make transport and storage effortless.

The unit features an easy-access oil sight glass and a built-in pressure relief valve to simplify maintenance and protect against overpressure.

Features and Benefits

• Dual voltage operation 110-120V / 220V 50 / 60Hz.
• Exceptional ultimate vacuum rating as low as 10 microns.
• Advanced air-cooled motor design for operation in high ambient temperatures.
• Proprietary oil mist free exhaust port cap for clean, safe job environment.
• Gas ballast valve speeds achievement of deep vacuum.
• Multiple port connections for 1 / 4″, 3 / 8″ SAE and 1 / 2″ ACME.
• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
• Solid rubber base provides extreme shock resistance.
• Sure-grip handle ergonomically designed for superior comfort and portability.
• Proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism.
• Improved materials selection including hardness and additives reduces wear and prevents galling's.
• Improved internal oiling system design extends life and improves vacuum performance.
