BK-RG80C-HVAC 80 mm Replacement Gauge – R410A/R22/R404A/R134a, PSI/°C

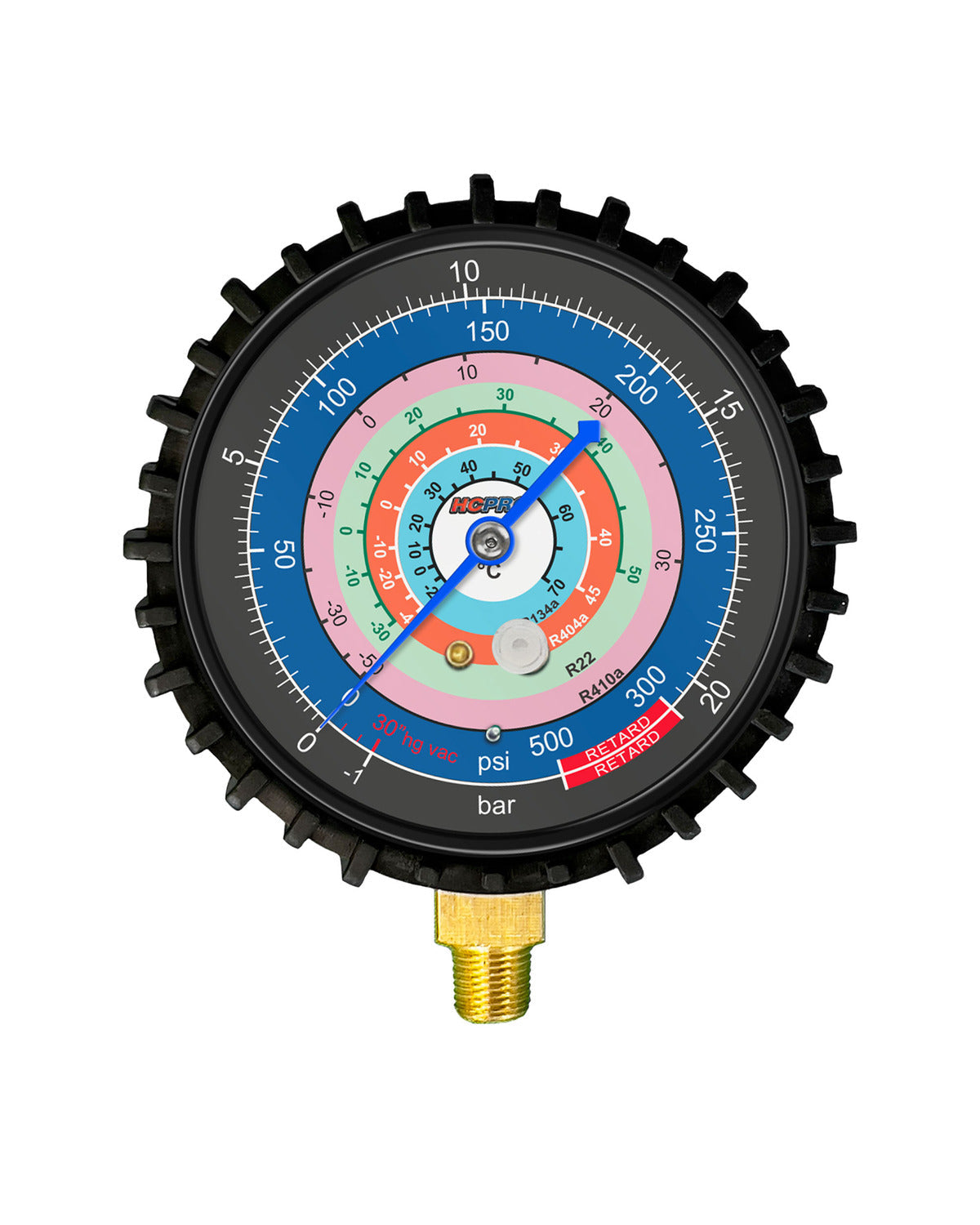

The HCPRO Black Knight BK-RG80C-HVAC is an 80 mm replacement manifold gauge with a PSI/°C scale, calibrated for R-410A, R-22, R-404A and R-134a.

Key features

• 80 mm (3-1/8") dial — calibrated for R-410A, R-22, R-404A and R-134a
• PSI/°C — dual-scale face for pressure and saturation temperature at a glance
• Low, high or matched set — buy the side you broke or replace both
• Drop-in fit — 1/8" NPT back mount for standard manifold bodies
• Color-coded bezel — shock-resistant build for daily service

Specifications

• Dial size: 80 mm (3-1/8")
• Scale: PSI/°C
• Connection: 1/8" NPT back mount
• Accuracy: ±1.6% full scale (Class 1.6)
• Max pressure: 800 PSI (burst >4,000 PSI)
• Build: brass base, polycarbonate lens, UV and moisture resistant
• Operating range: -40°C to 80°C
• Options: low side, high side or low/high set

Built for

A direct drop-in to restore accurate °C readings on a worn full-size HVAC manifold.
