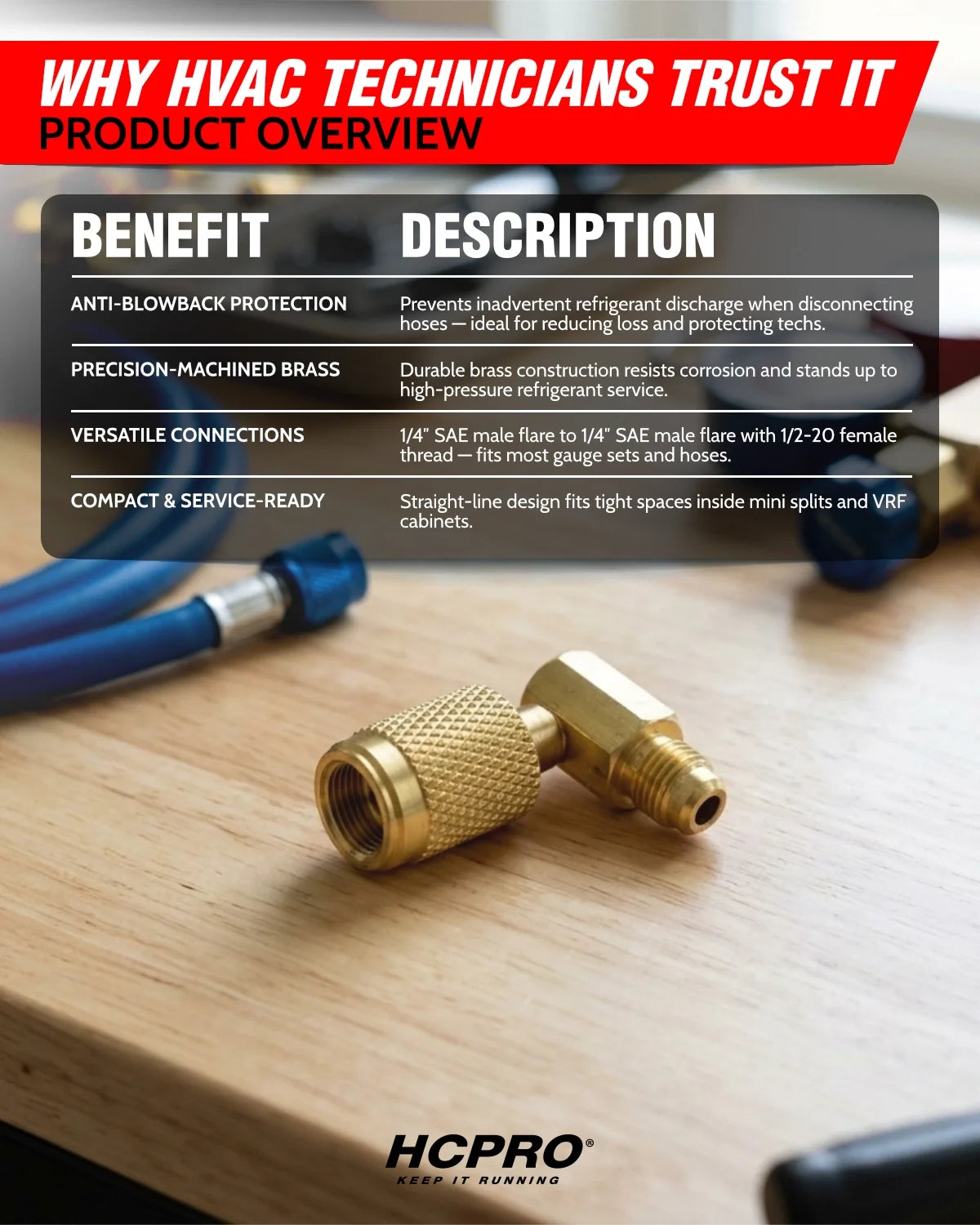

  • Gold HVAC fitting on a wooden surface with text about benefits on a red and white banner.

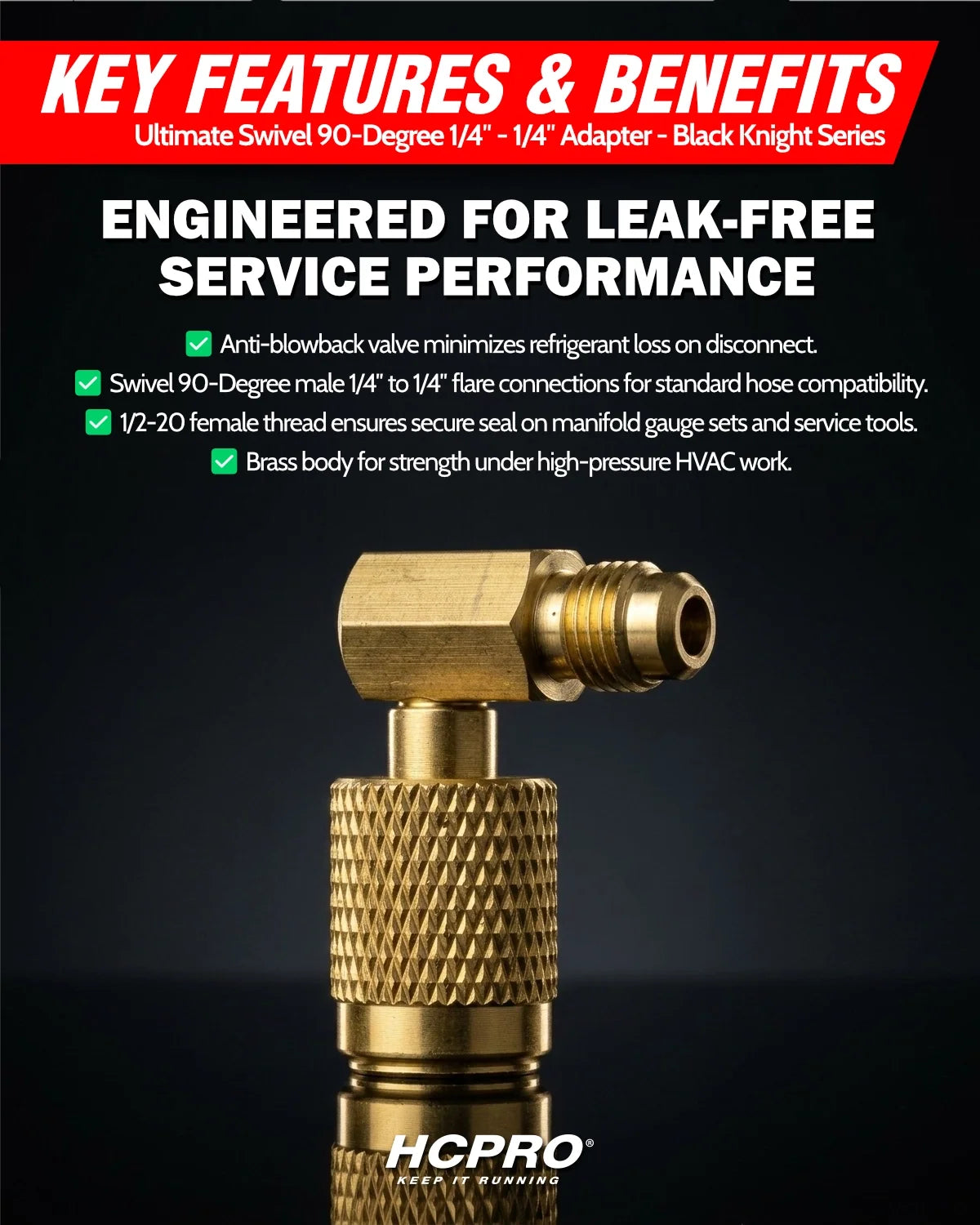

  • Gold adapter with text highlighting features and benefits on a black background

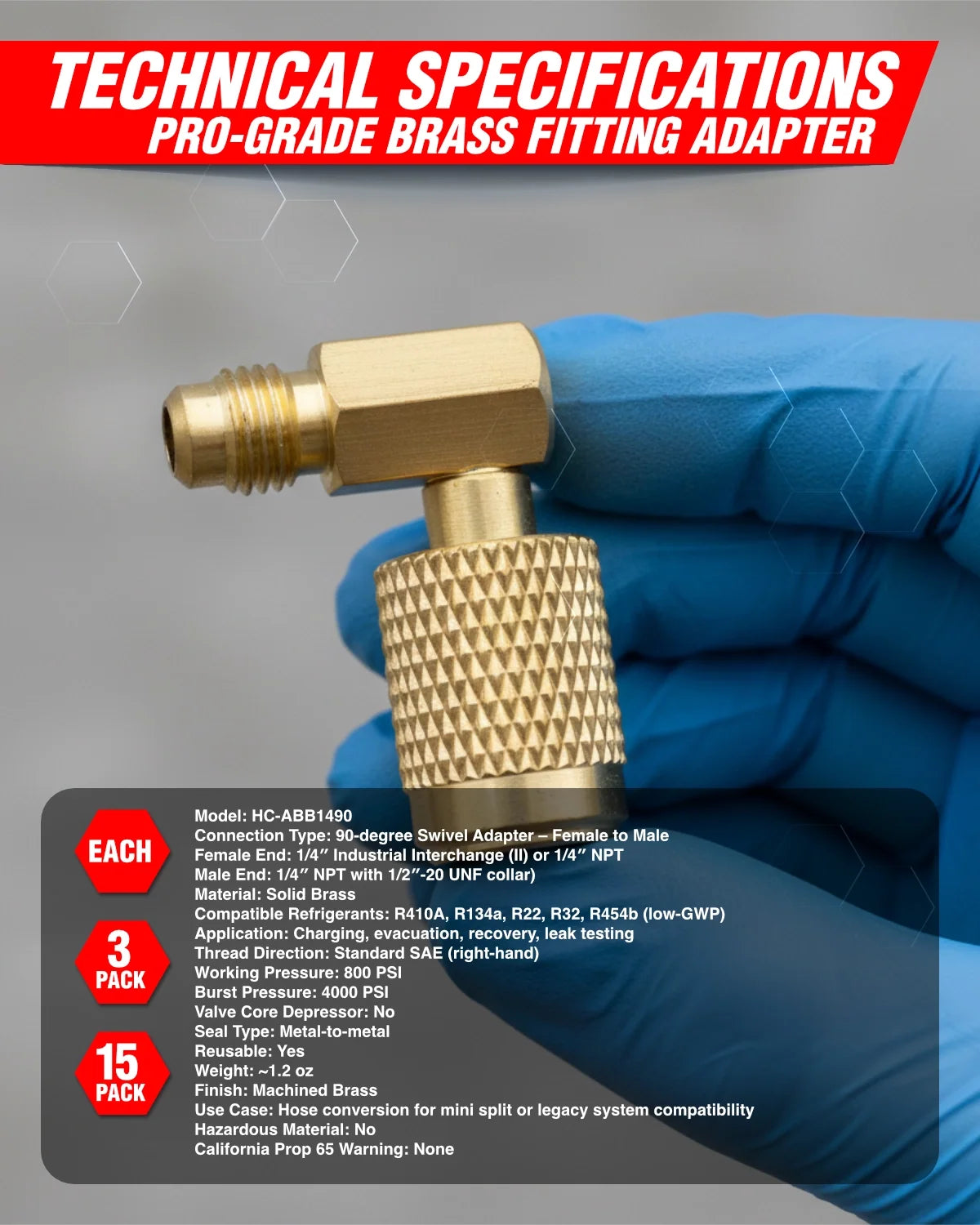

  • Pro-grade brass fitting adapter held by a gloved hand with technical specifications displayed.

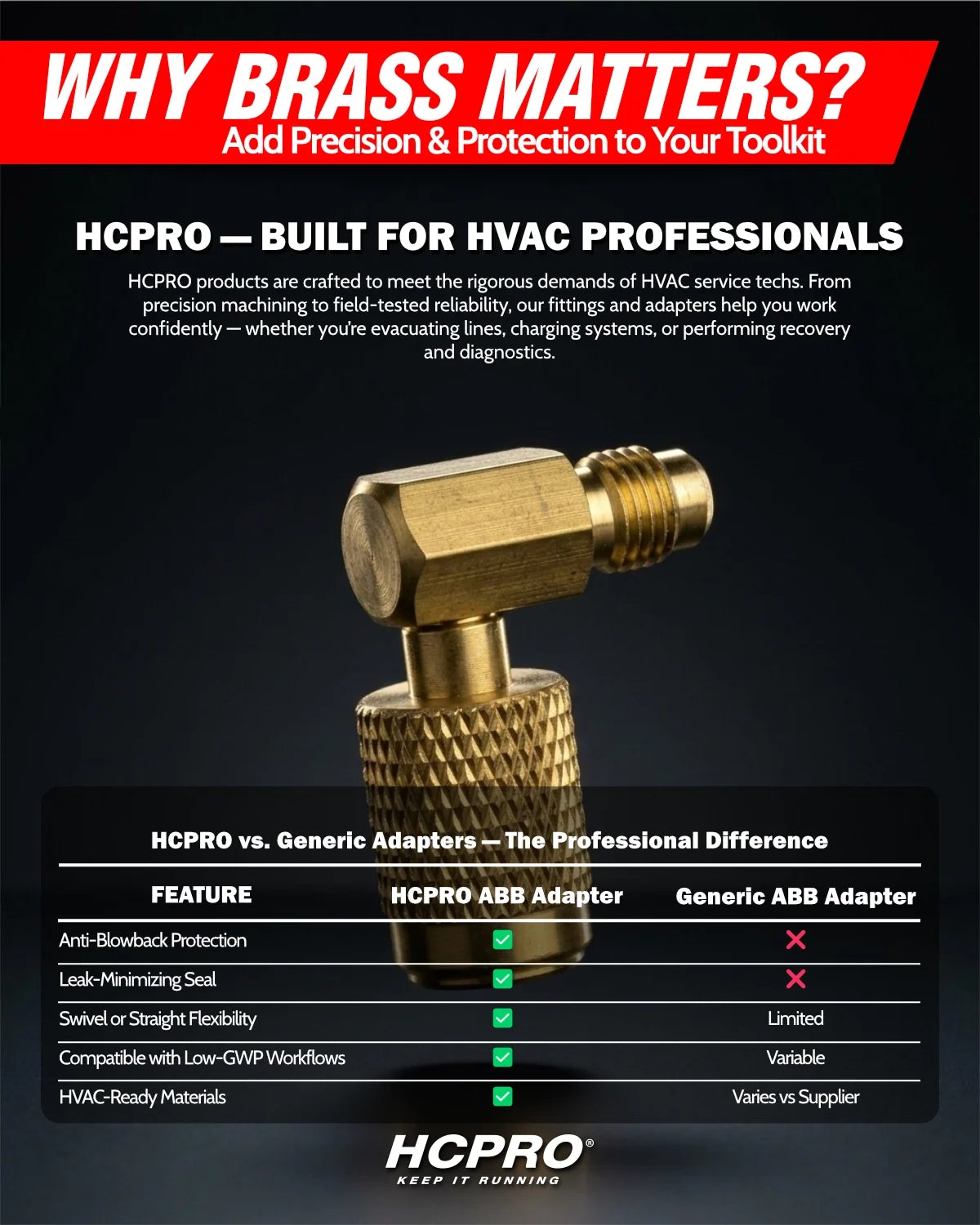

  • Advertisement for HCPRO HVAC adapters with a brass adapter on a dark background.
  • HCPRO HCABB1490 90-Degree Anti-Blowback Swivel Adapter 1/4" to 1/4" Male, 1/2"-20 Female image 2
  • HCPRO HCABB1490 90-Degree Anti-Blowback Swivel Adapter 1/4" to 1/4" Male, 1/2"-20 Female image 1 — view 8
  • HCPRO HCABB1490 90-Degree Anti-Blowback Swivel Adapter 1/4" to 1/4" Male, 1/2"-20 Female image 1 — view 9
  • HCPRO HCABB1490 90-Degree Anti-Blowback Swivel Adapter 1/4" to 1/4" Male, 1/2"-20 Female image 1 — view 10
  • Black Knight Series logo with a helmeted figure on a white background
  • Sku: 22-0095

HCABB1490 90° Anti-Blowback Swivel Adapter – 1/4" SAE x 1/4" SAE, Brass

90-degree anti-blowback swivel adapter with 1/4" male flare and 1/2"-20 female thread. Ideal for tight HVAC spaces and mini split servicing.

$22.82
Shipping calculated at checkout.
In stock!
Spend $50.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

Free shipping on orders $50+ to the lower 48 states. Alaska, Hawaii, Puerto Rico and U.S. territories ship at standard rates.

Adapter Quantity: Each

Guaranteed safe checkout

Product Description

The HCPRO Black Knight HCABB1490 is a 90° anti-blowback swivel adapter in 1/4" × 1/4" SAE — protect your charge in tight spaces with a sealed-core, no-loss connection.

Key features

  • Anti-blowback sealed core — the core stays sealed until connected, so nothing vents on connect or disconnect
  • 90° swivel — reaches cramped service ports and relieves hose strain
  • 1/4" SAE × 1/4" SAE — fits standard hoses and service ports
  • Forged brass — 800 PSI working / 4,000 PSI burst, rated for R-410A, R-32, R-454B, R-22 and R-134a

Specifications

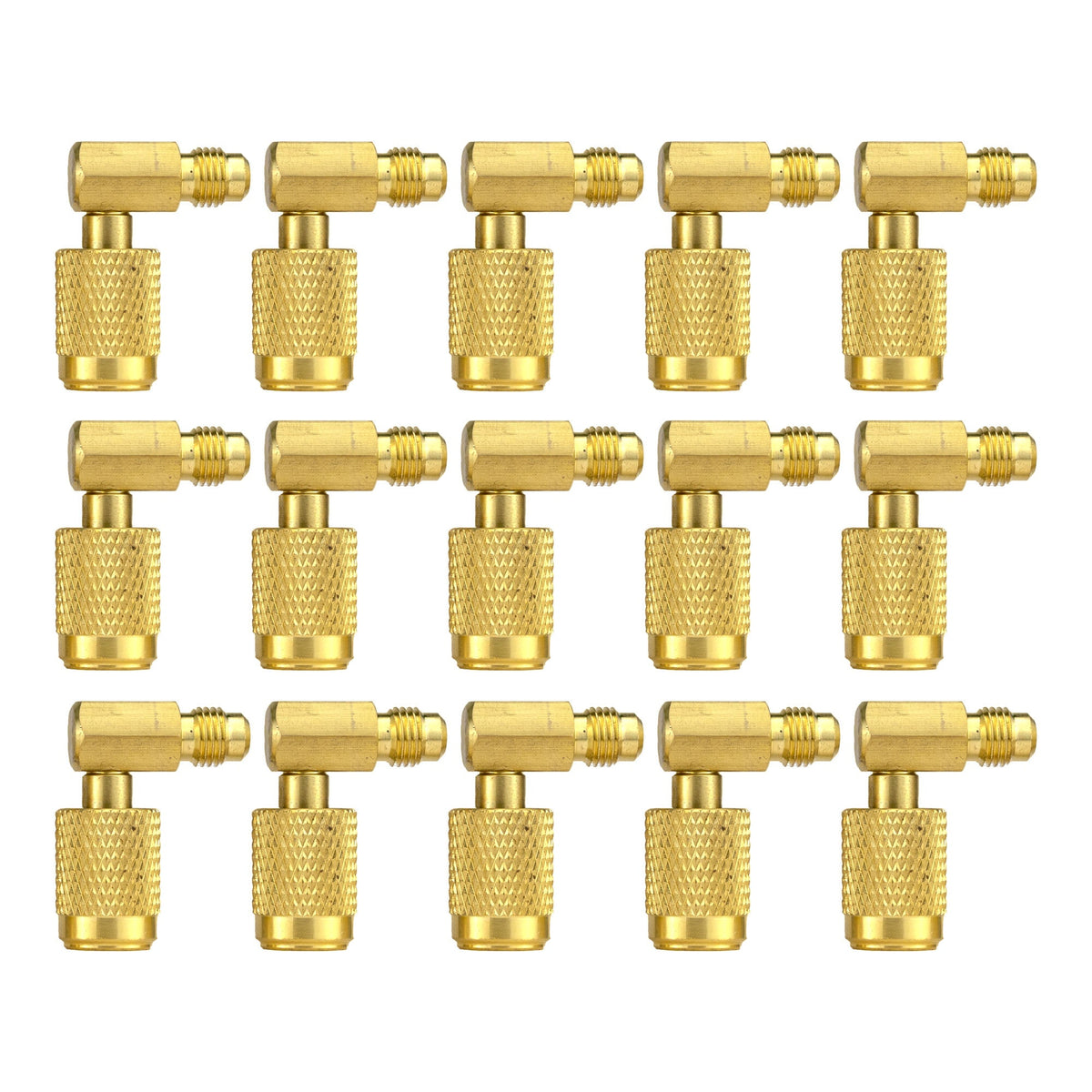

  • Pack sizes: single, 3-pack or 15-pack

Built for

The angled 1/4" no-loss adapter for service ports you can barely reach.
View full details
HCPRO HCABB1490 90-Degree Anti-Blowback Swivel Adapter 1/4" to 1/4" Male, 1/2"-20 Female image 1

HCABB1490 90° Anti-Blowback Swivel Adapter – 1/4" SAE x 1/4" SAE, Brass

Each

$22.82
At a Glance

Product Highlights

Technical Specifications

Full specifications

  • Connections: 1/4" SAE × 1/4" SAE
  • Angle: 90° swivel
  • Material: Forged brass
  • Working pressure: 800 PSI
  • Burst pressure: 4,000 PSI
  • Refrigerants: R-410A, R-32, R-454B, R-22, R-134a
  • Core: Anti-blowback, sealed until connected
  • Pack sizes: Single, 3-pack or 15-pack
