RAV1 1/4" SAE High-Pressure Access Valve – R410A, R32, R22, 800 PSI

The HCPRO Black Knight RAV1 is a 1/4" SAE high-pressure access valve that adds permanent, serviceable core access on R-410A, R-32 and R-22 systems.

Key features

• 1/4" SAE male — fits standard service ports and manifold hoses
• High-pressure rated — 800 PSI working / 4,000+ PSI burst for R-410A and A2L conditions

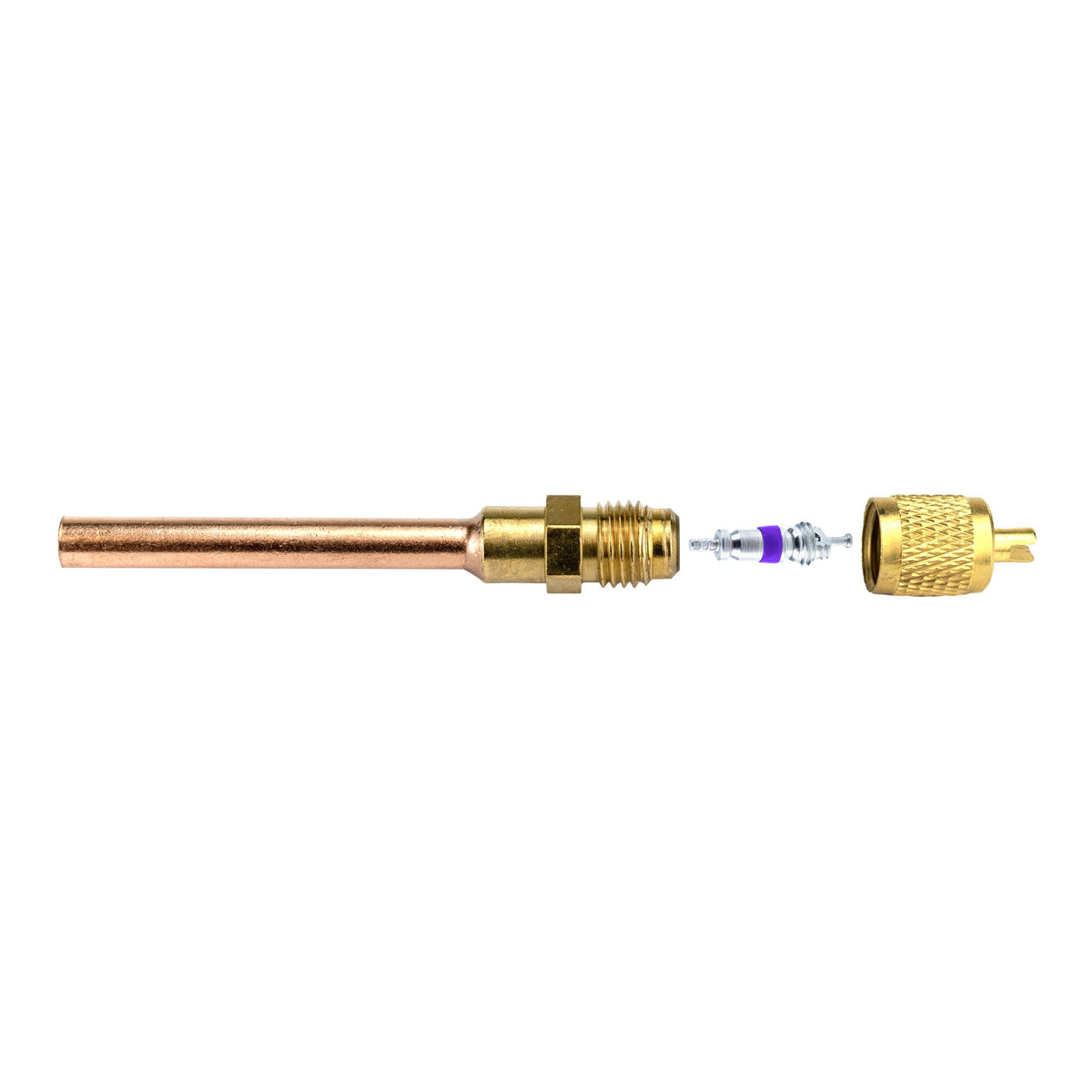

• Replaceable Schrader core — service the core without changing the valve body
• Precision-machined brass — O-ring and brass-to-brass seal for a leak-tight, repeatable fit
• Made to OEM standards — precision-machined in South Korea to Black Knight spec

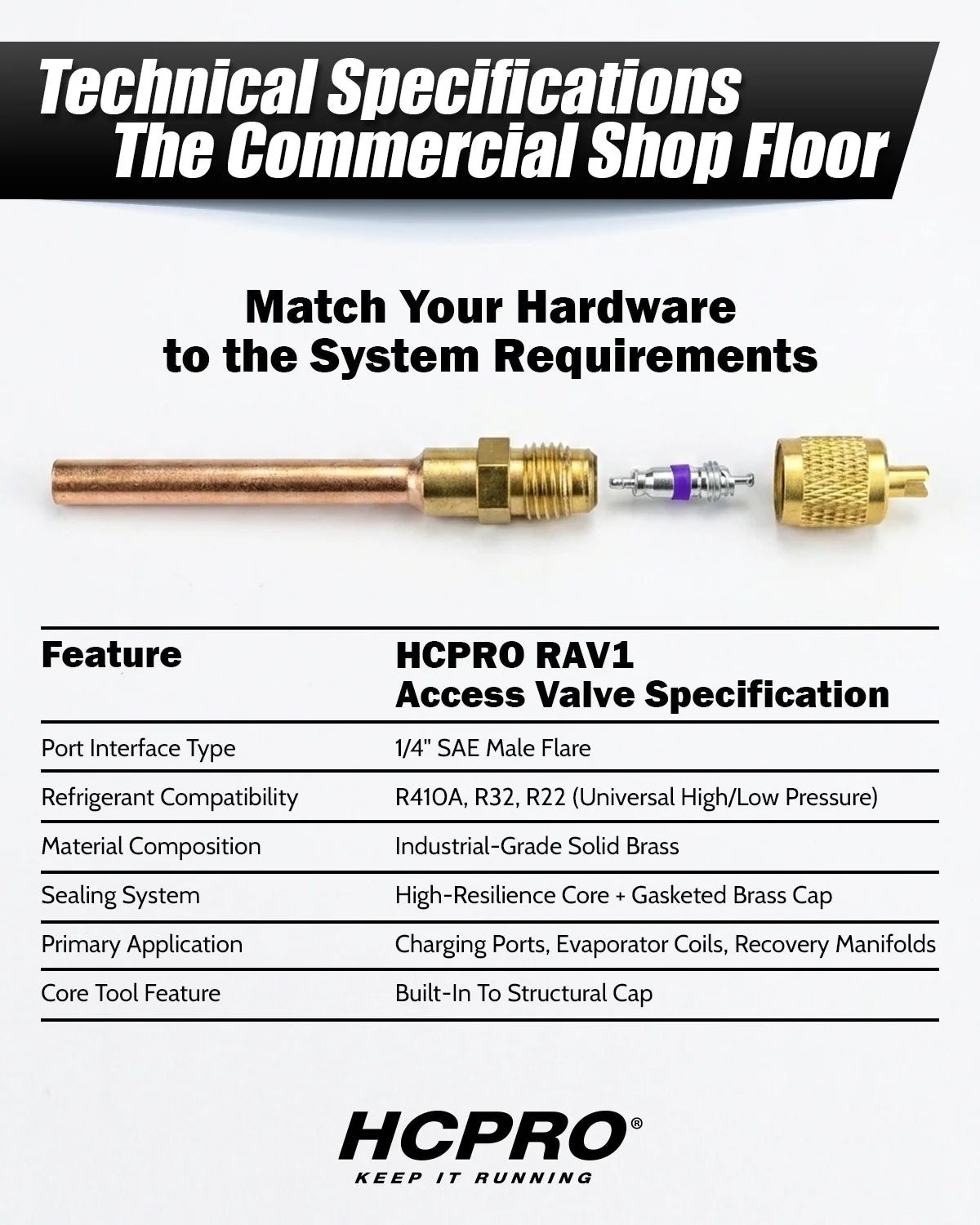

Specifications

• Connection: 1/4" SAE male flare
• Refrigerants: R-410A, R-32, R-22, R-134a
• Temperature range: -40°F to 300°F
• Length: 2"
• Core included: yes
• Pack sizes: single, 3, 6 or 12

Built for

Adding service access to charging ports and recovery points — pair with an HCPRO core removal tool to swap cores under pressure.
