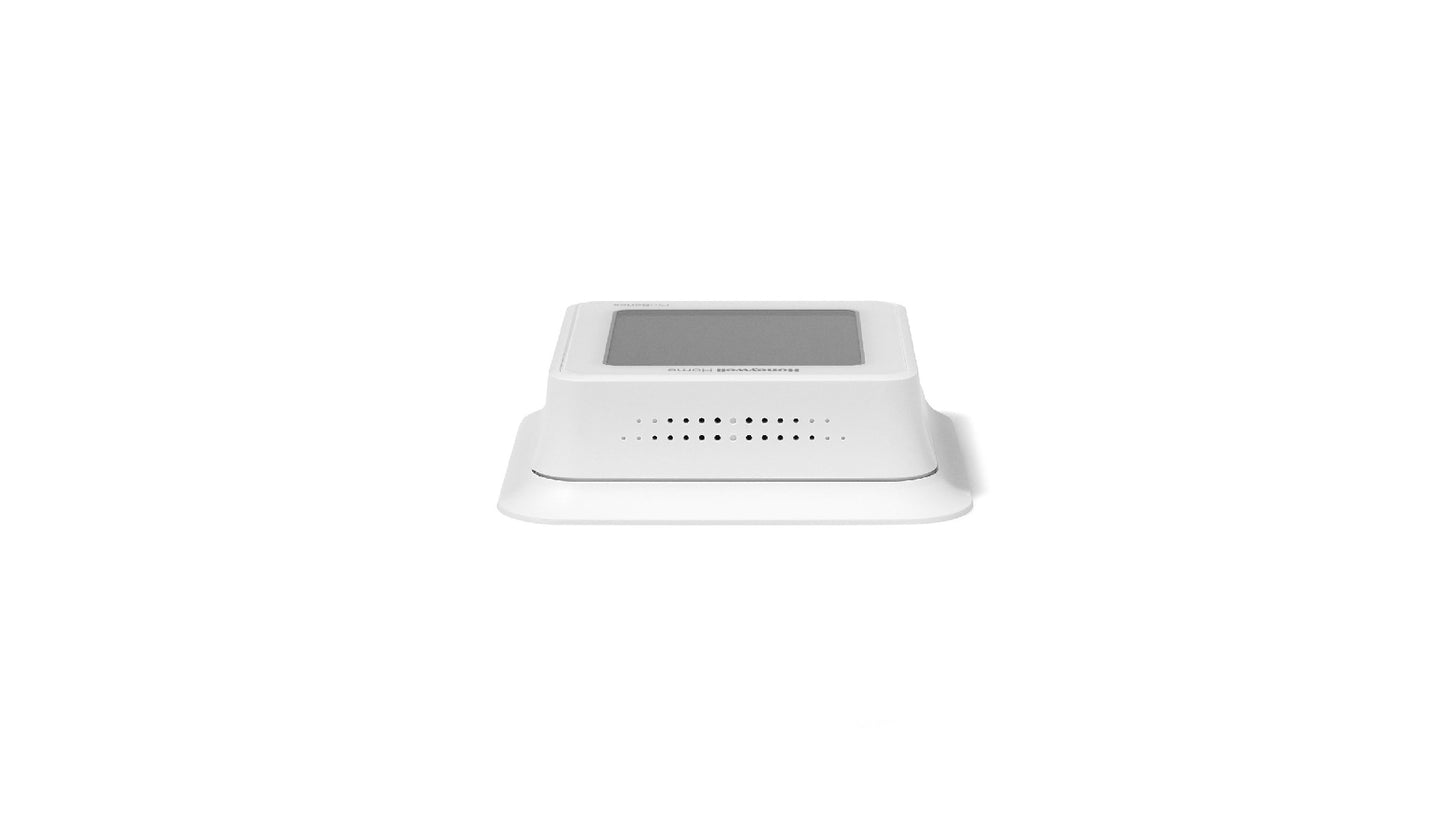

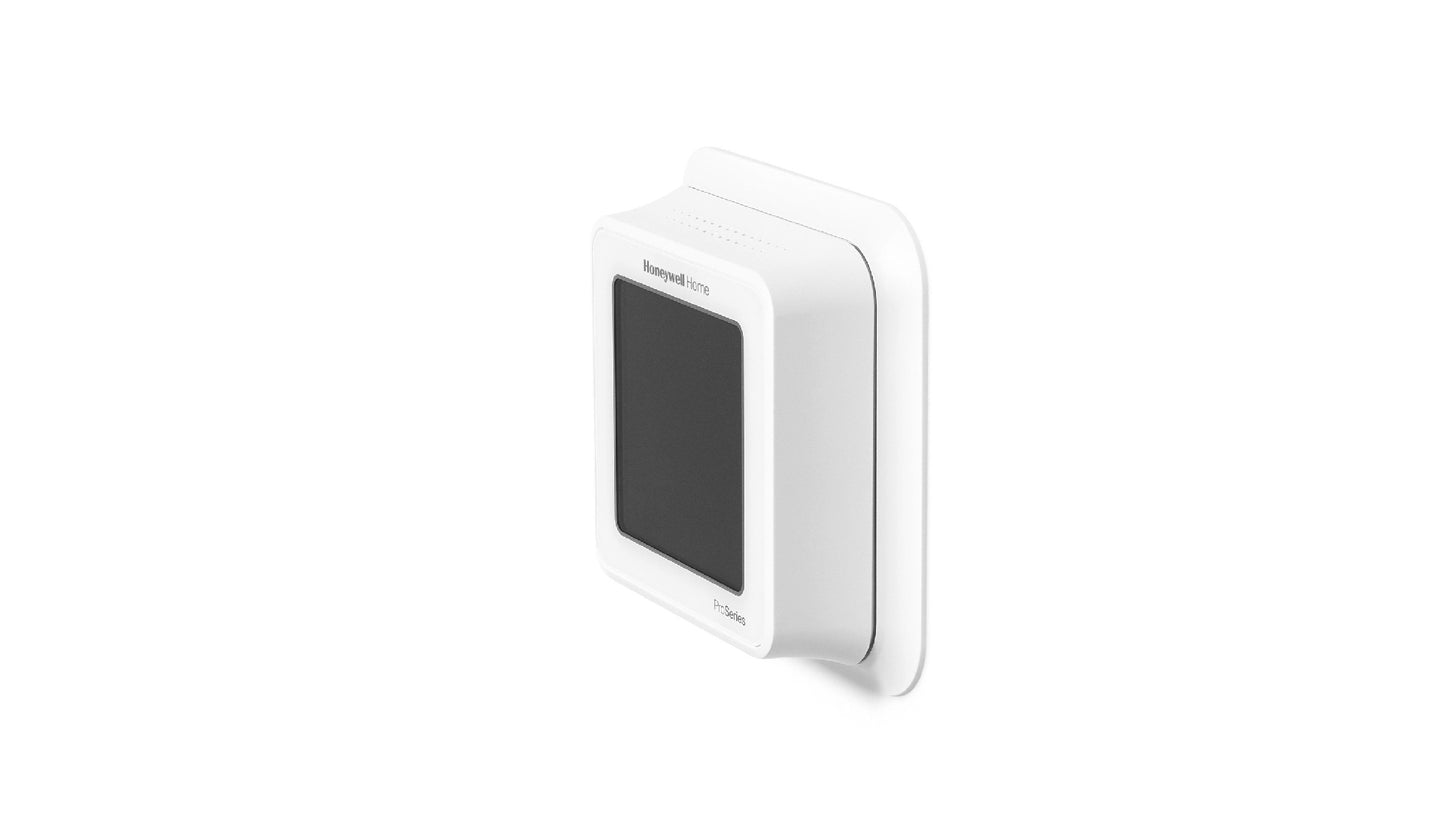

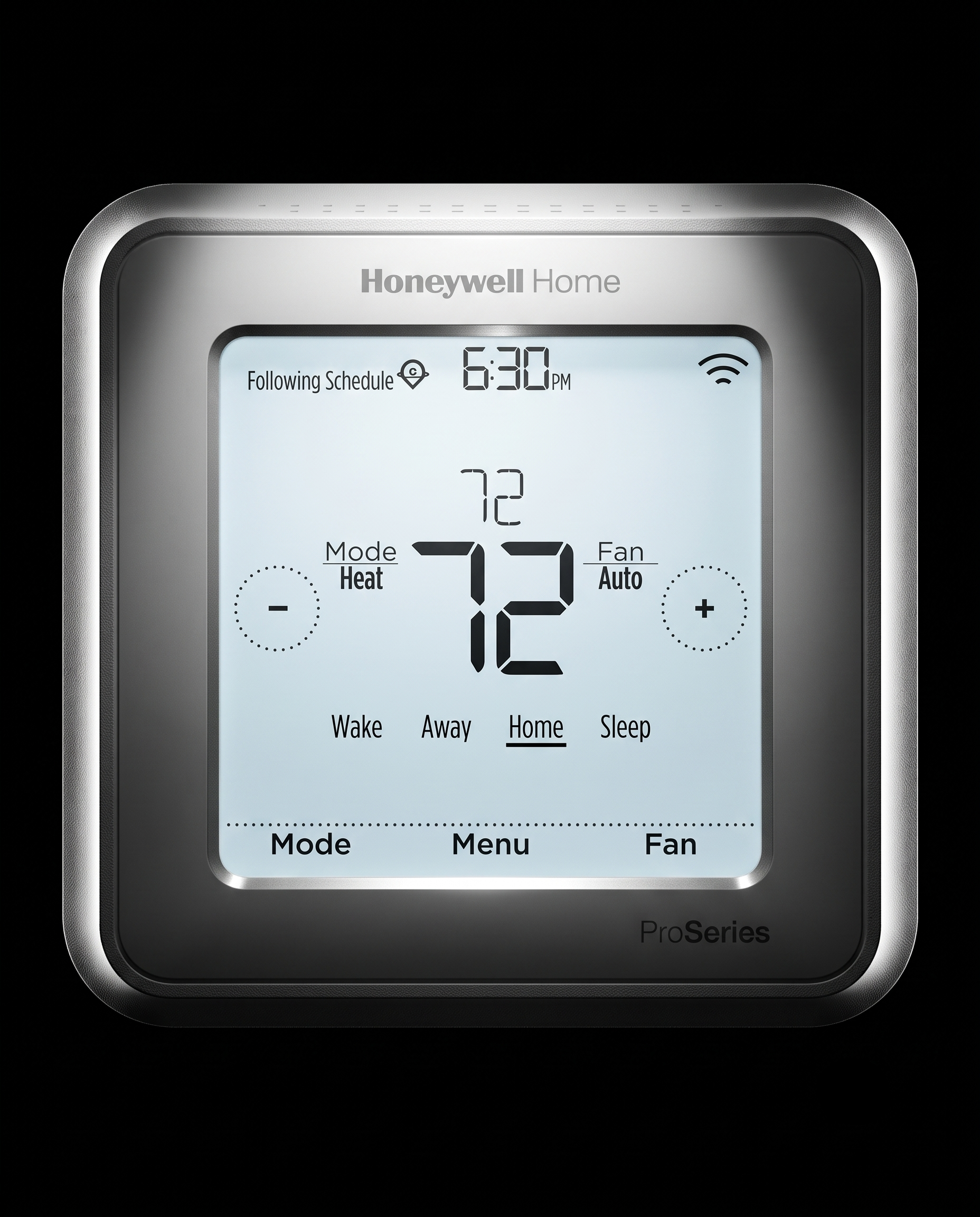

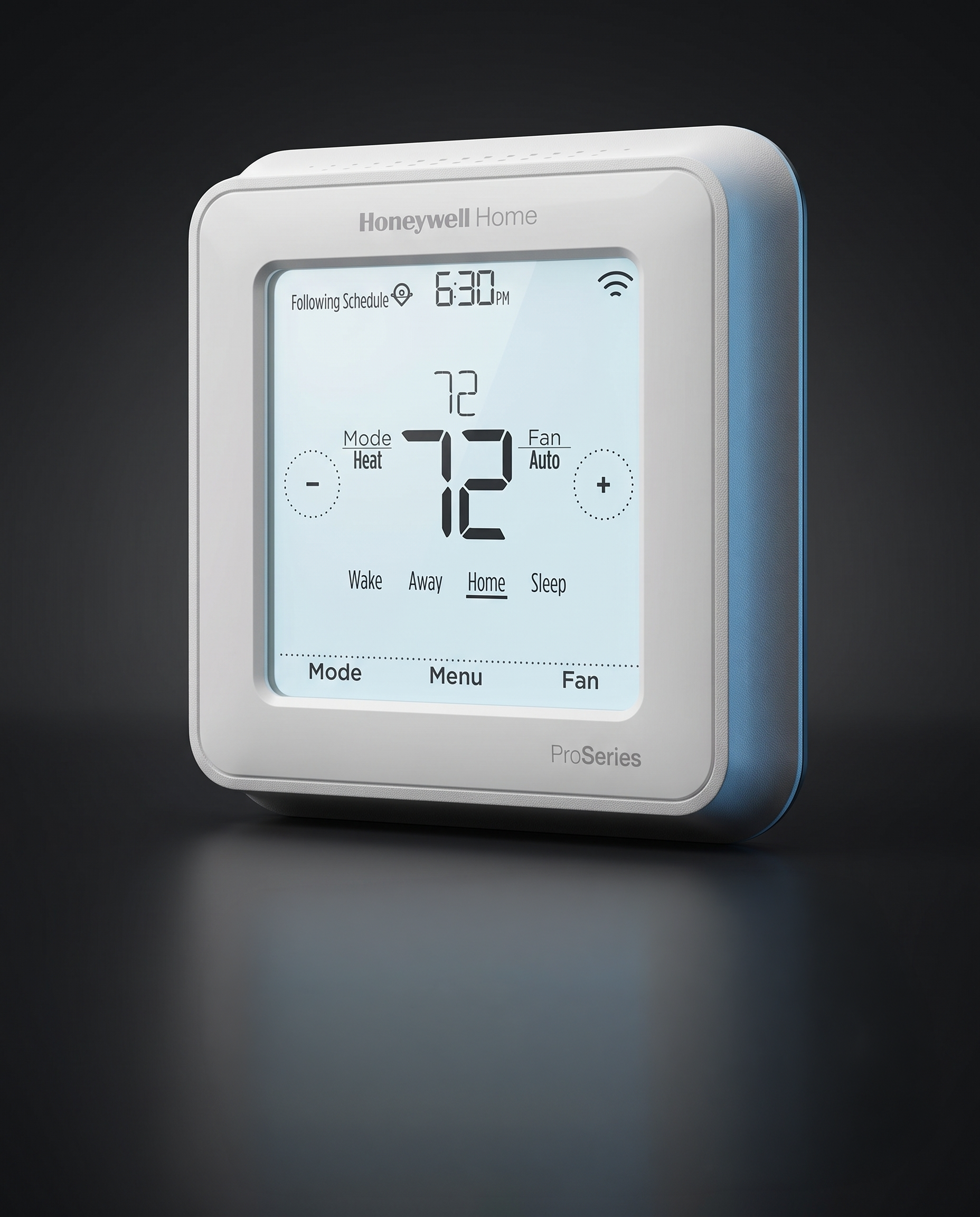

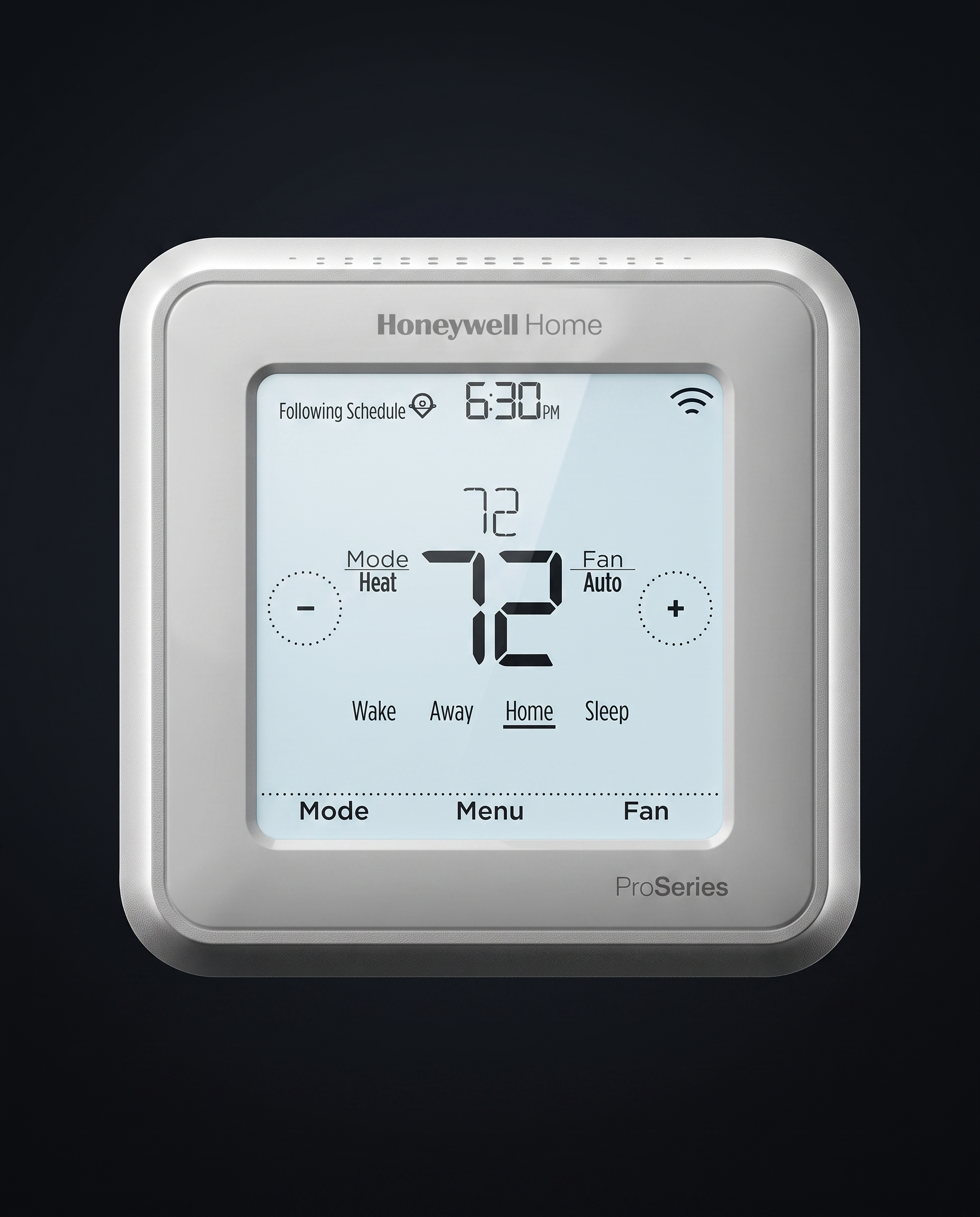

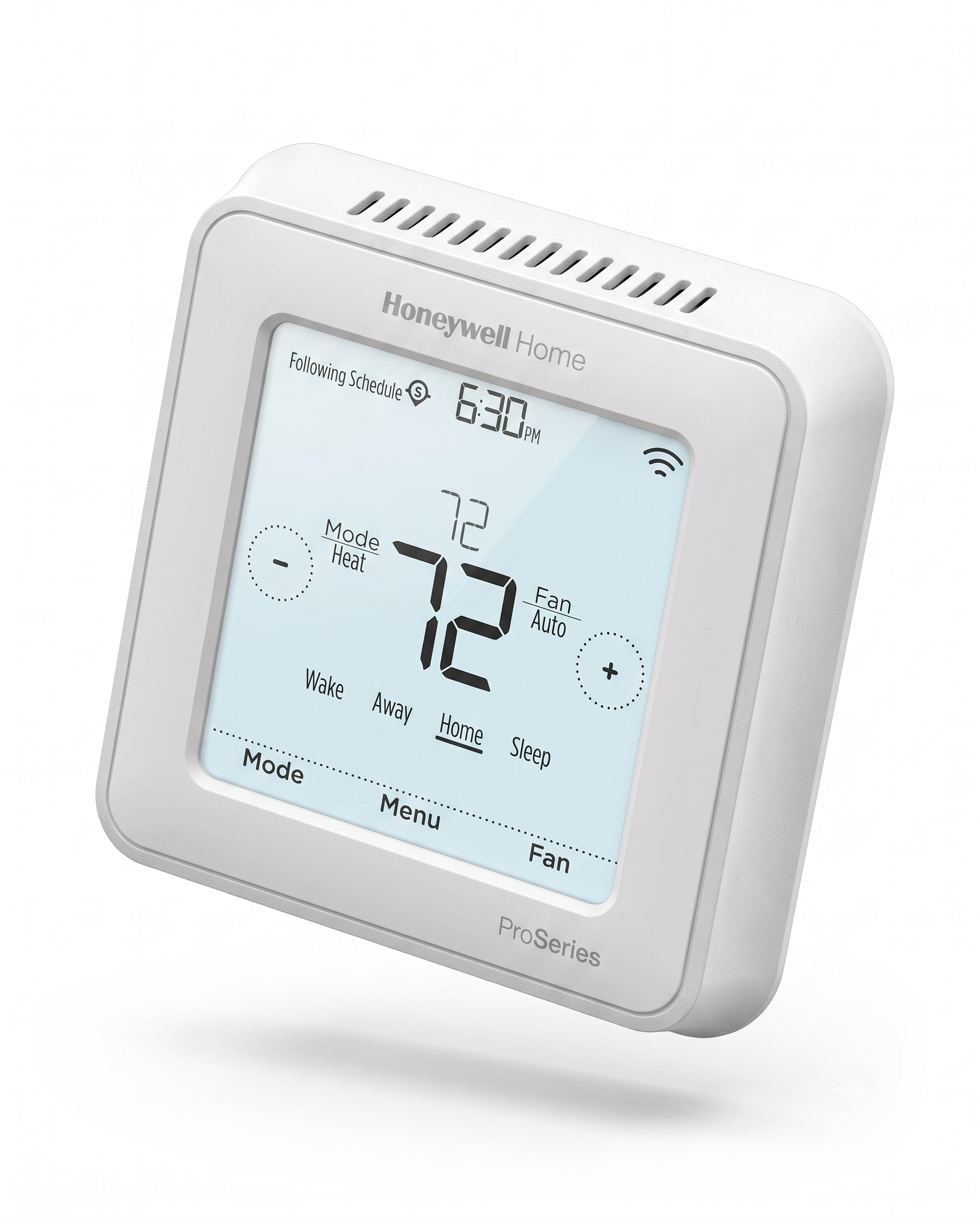

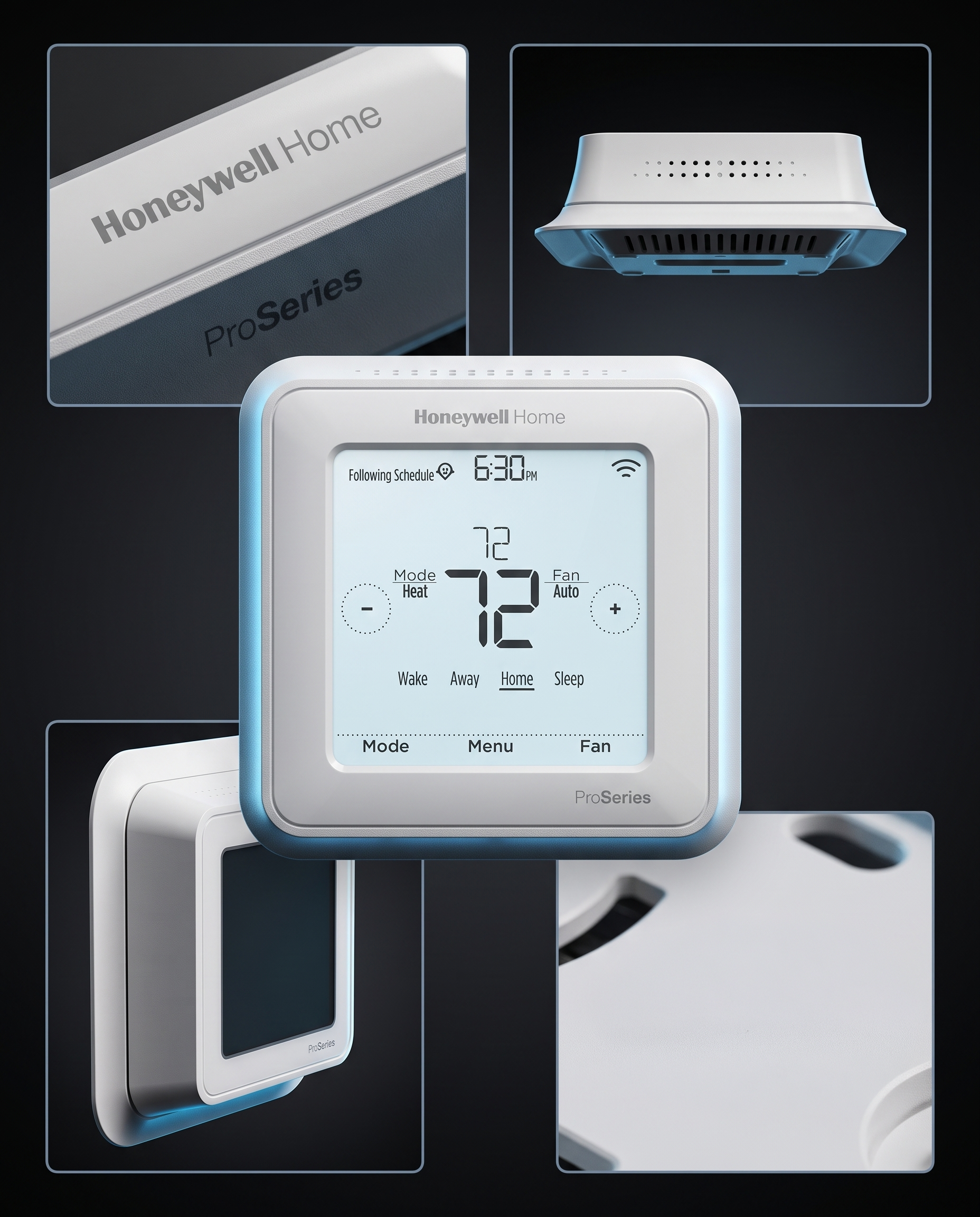

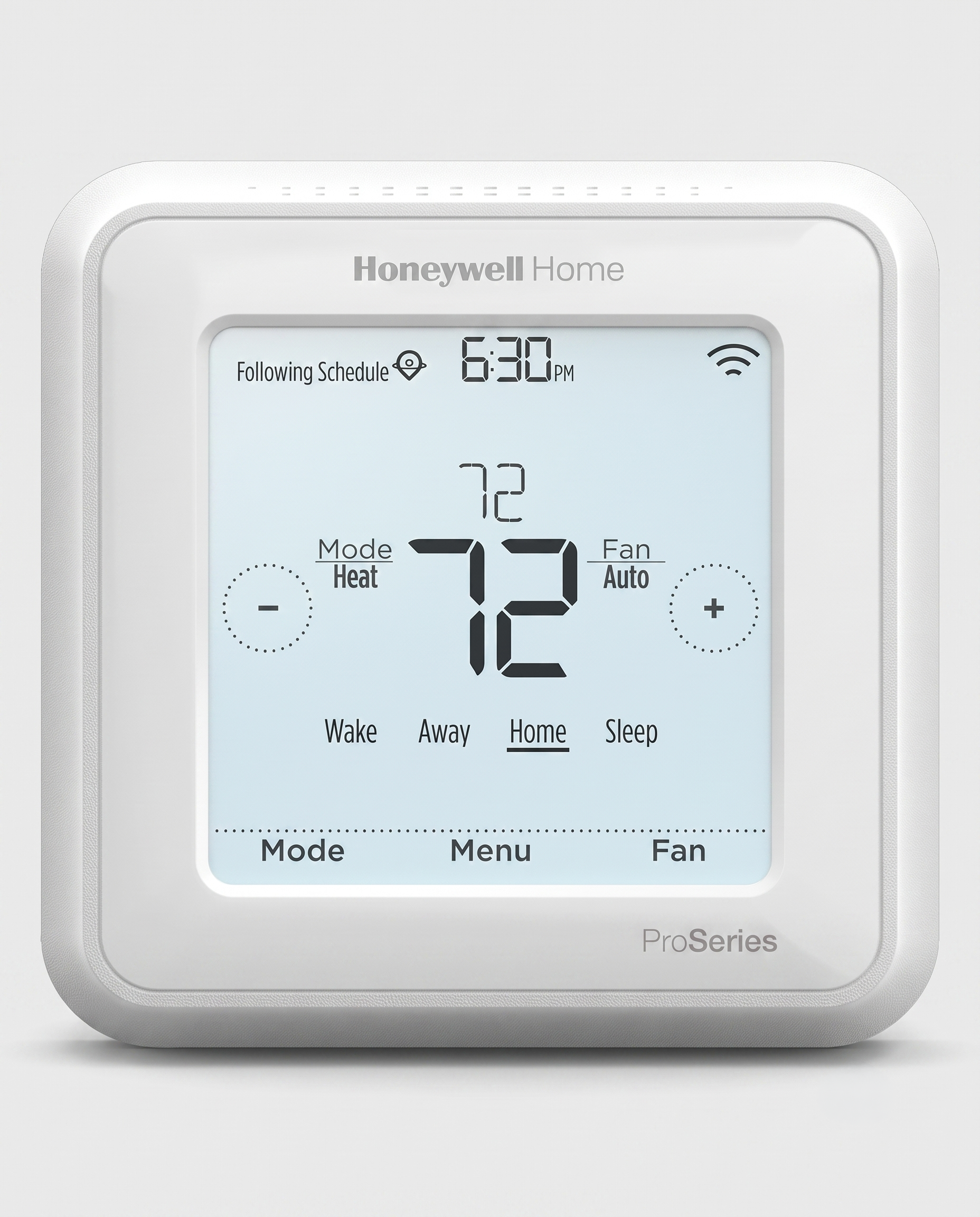

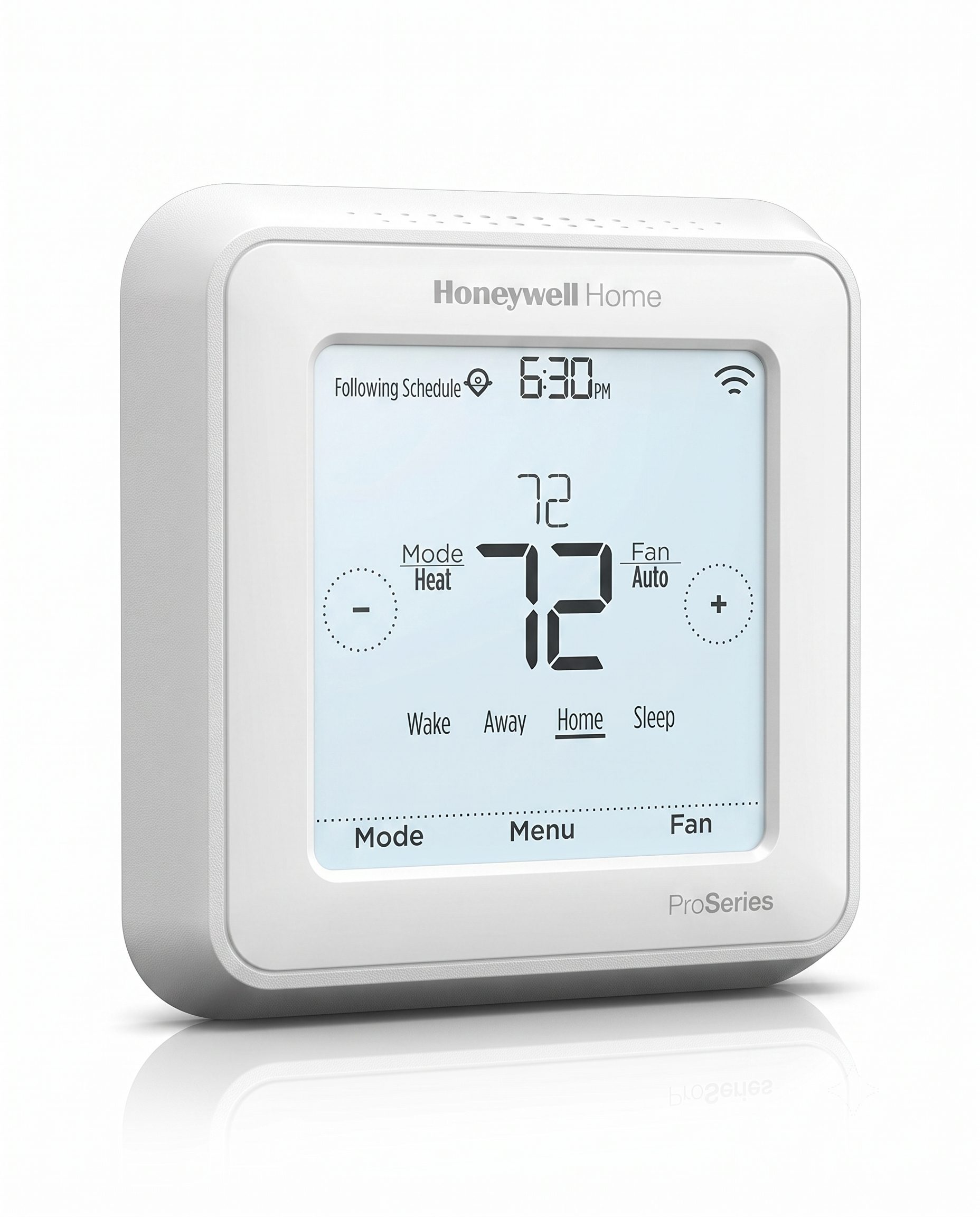

Honeywell T6 PRO-Smart Thermostat Multi-Stage 2 Heat/2 Cool

• Item: Programmable Thermostat
• Voltage: 20/30VAC
• Stages Heat: 2

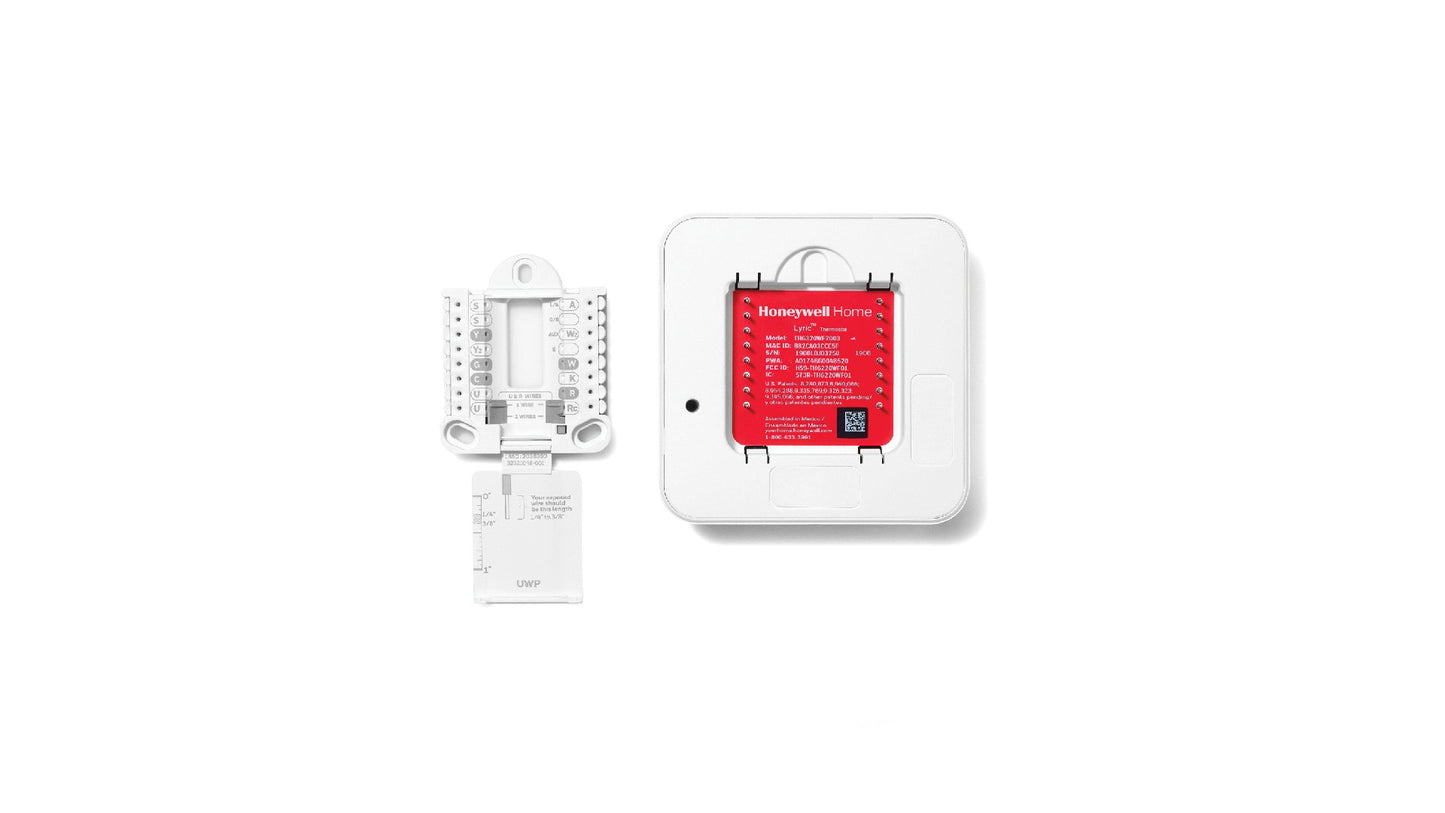

• Mounting Type: UWP Mounting System
• Mounting Location: Wall
• Color: White
• Control Range: Heat 40 Degrees F to 90 Degrees F; Cool 50 Degrees F to 99 Degrees F
• System Switching: Auto-Heat-Cool-Off-Emergency
• Stages Cool: 2
• Dual Transformer Compatible: No
• Power Method: Hardwired
• 750mV Compatible: No
• Programs per Week: 7, 5-2, 5-1-1
• Terminal Designations: RC, R, C, W, W2, AUX, Y, Y2, O/B, G, K, E, U, U, L/A, S, S
• Keypad Lockout: No
• Filter Indicator: No
• Green Certification or Other Recognition: ENERGY STAR
• Includes: Universal Wall Plate Mounting System, Mounting Hardware, J Box Adapter, Decorative Cover Plate, Installation Instructions and User Guide
• Fan Switching: Yes
• Programmable Fan: Yes
• Display Color: Blue
• Temporary Temperature Hold: Yes
• Automatic Changeover: Yes
• Batteries Included: No
• Battery Backup: No
• Low Battery Indicator: No
• Temp. Settings per Day: 0, 1, 2, 4
• WiFi Capability: Yes
• Dehumidification Control: No
• For Use With: Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Efficiency Furnace, Heat Pumps, Steam, Gravity
• Humidification Control: No
• Remote Sensing Capability: Yes
• Display Type: Backlit
• Temporary Program Override: Yes
• Features: WiFi, Geofence, Programmable, Universal Mounting
• Temperature Limiting: No
• Footnotes: 1, 2, 3, 6, 7 ,8
• Standards: ENERGY STAR
• Occupancy Sensor: Compatible with Occupancy Sensor
• Stages: 2H/2C Conventional, 2H/1C Heat Pump
• Control Type: Touch Screen
• Millivolt Compatible: No
• Fan Settings: Auto-On-Circulate
• Thermostat Type: Low Voltage
• Temperature Differential: 1 Degrees F
• Application/Stages: Heat and Cool; 2H/2C Conventional, 2H/1C Heat Pump
• Minimum Operating Humidity: 5%
• Frequency: 50 Hz, 60 Hz
• Mounting Direction/Shape: Square
• Backlit Screen: Yes
• Smart Capabilities: Geofencing, Voice Enabled
• Minimum Temperature Control: 37 Degrees F
• System Settings: Auto-Cool-Emergency Heat-Heat-Off
• Housing Color: White
• Wi-Fi Specifications: 802.11b, 802.11g, 802.11n
• Compatible Software/Device: Amazon Alexa, Apple Homekit, Cortana, Google Assistant, IFTTT
• Remote Control Functions: Remote Access Through Smartphone
• Mounting Direction: Horizontal
• Outdoor Weather Sensor: Yes
• Temperature settings per day: 0, 1, 2, 4
• Maximum Temperature Control: 102 Degrees F
• Maximum Operating Humidity: 90%
• Shape: Square
• Temperature Scale: Fahrenheit/Celsius
• Changeover Type: Automatic and Manual
• Application: Heat and Cool
• Number of Cooling Stages - Heat Pump System: 1
• Temperature Control Range: 40 Degrees F to 90 Degrees F
• Smart Connectivity: Cellular Control, Wi-Fi Assistant Enabled, Wi-Fi Control
• Number of Heating Stages - Conventional System: 2
• Amazon Alexa Compatible: Yes
• Filter Change Reminder: No
• Google Home Compatible: No
• Includes Batteries: No
• Temperature Readout: Yes
• Wi-Fi Frequency: 2.4 GHz
• Compatible System Type: Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
• Programming Capability: 5-1-1, 5-2, 7-Day
• Operating Humidity Range: 5% to 90% RH
• Includes Positive Off: Yes
• Number of Zones: 1
• Number of Heating Stages - Heat Pump System: 2
• Number of Cooling Stages - Conventional System: 2
• Electrical Connection Type: Hardwired
• Country of Origin (subject to change): Mexico

Stay Connected with the Resideo App

With the Resideo app, you can control your in-home devices from anywhere, anytime, using any mobile device. The app allows you to manage lights, locks, cameras, thermostats, and more. Additionally, you receive alerts when a smart home device is triggered and can review a complete history of system events, ensuring you're always informed.
