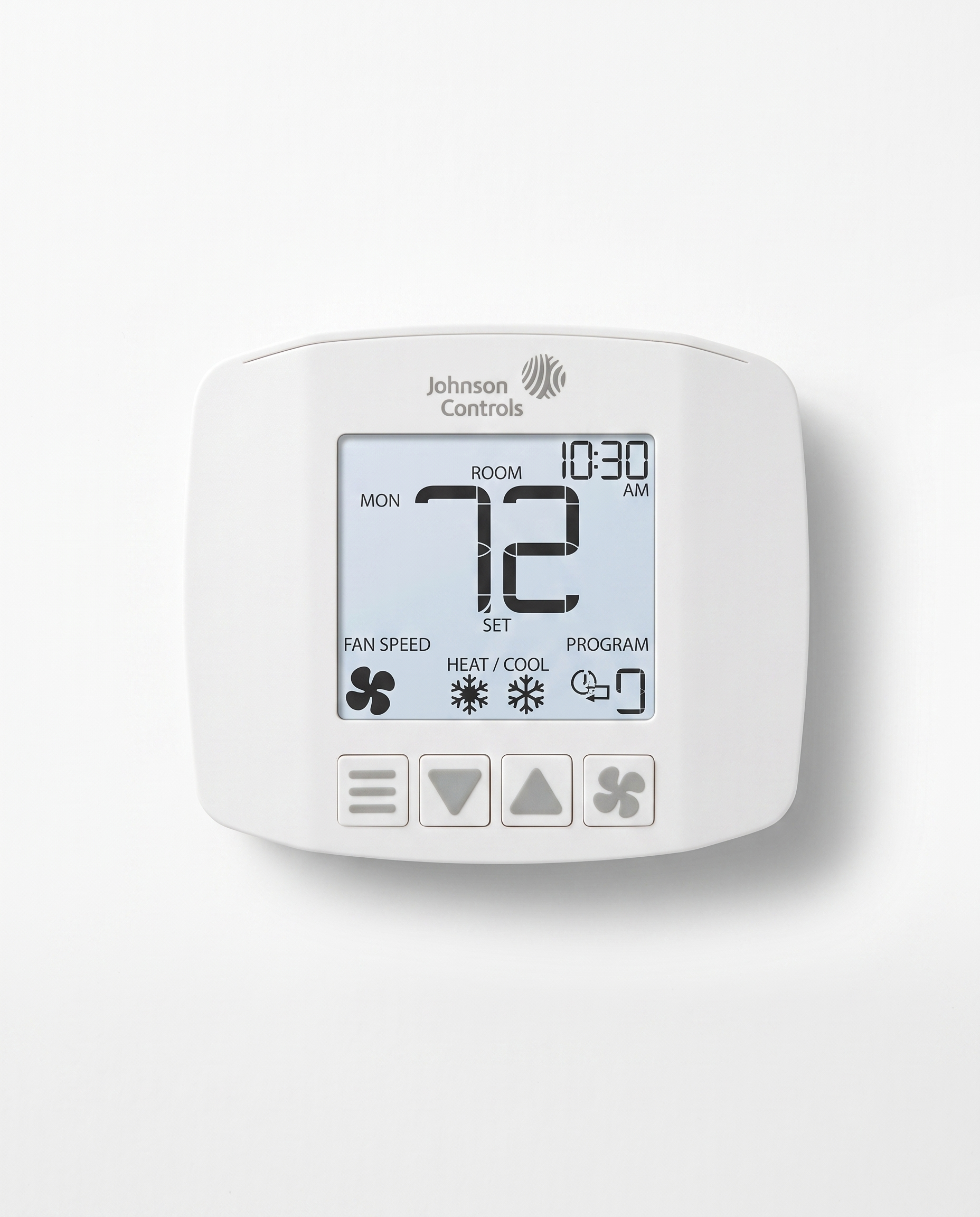

Johnson Controls FCP-PA-701-B 7-Day Programmable FCU and PTAC Thermostat

The FCP Non-Programmable and FCP 7-Day Programmable Fan Coil Unit (FCU) or Packaged Terminal Air Conditioner Unit (PTAC) Thermostats provide simple to-use control of 2-pipe or 4-pipe FCU or PTAC.

$74.99
In stock!
Spend $99.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

We’re proud to offer free shipping on qualifying orders within the continental U.S. on orders of $99 or more:

  • Remote Locations: Unfortunately, we do not offer free shipping to remote areas (including Alaska, Hawaii, Puerto Rico, and outlying territories) due to increased carrier costs. Standard shipping rates will apply.

Shipping zones are calculated automatically at checkout based on your delivery address.

This is a demonstration store. You can't purchase this product.

Guaranteed safe checkout

Trusted Shipping Carriers

Product Description

Johnson Controls FCP-PA-701-B 7-Day Programmable FCU and PTAC Thermostat

The FCP Non-Programmable and FCP 7-Day Programmable Fan Coil Unit (FCU) or Packaged Terminal Air Conditioner Unit (PTAC) Thermostats provide simple to-use control of 2-pipe or 4-pipe FCU or PTAC. These thermostats provide on/off control, up to three speeds of fan control, and dry contact unoccupied or occupied control. Use the thermostats as stand-alone devices in commercial buildings, such as schools, offices, and hotels, and to provide access to parameters such as system mode, fan mode, and temperature setpoints.

Flexible Compatibility

It supports 2‑pipe and 4‑pipe FCUs, conventional PTACs, and heat‑pump PTACs with or without auxiliary heat, offering on/off control plus dry‑contact occupied or unoccupied modes.

Advanced Scheduling

With up to six programmable periods per day over a full 7‑day schedule, technicians can tailor heating and cooling cycles to exact occupancy patterns for maximum comfort and efficiency.

Intuitive Display & Operation

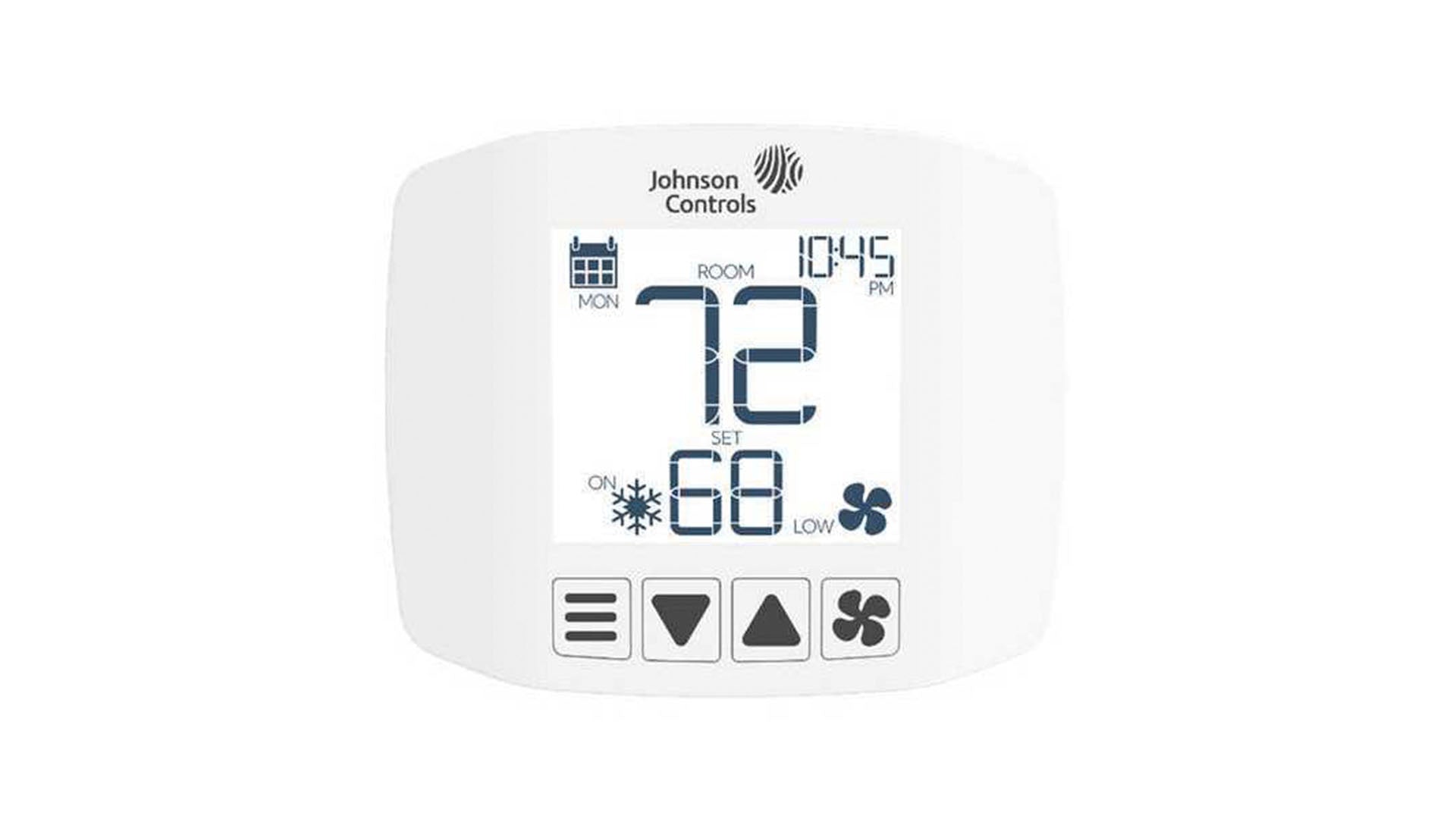

The white LED backlit LCD display provides clear visibility in any lighting condition, and the intuitive button interface makes adjusting setpoints and modes quick and error‑free.

Battery Backup

A built‑in lithium coin‑cell battery ensures a minimum 48 hours of real‑time‑clock backup, preserving your programmed schedule during short power outages.

Quick Installation

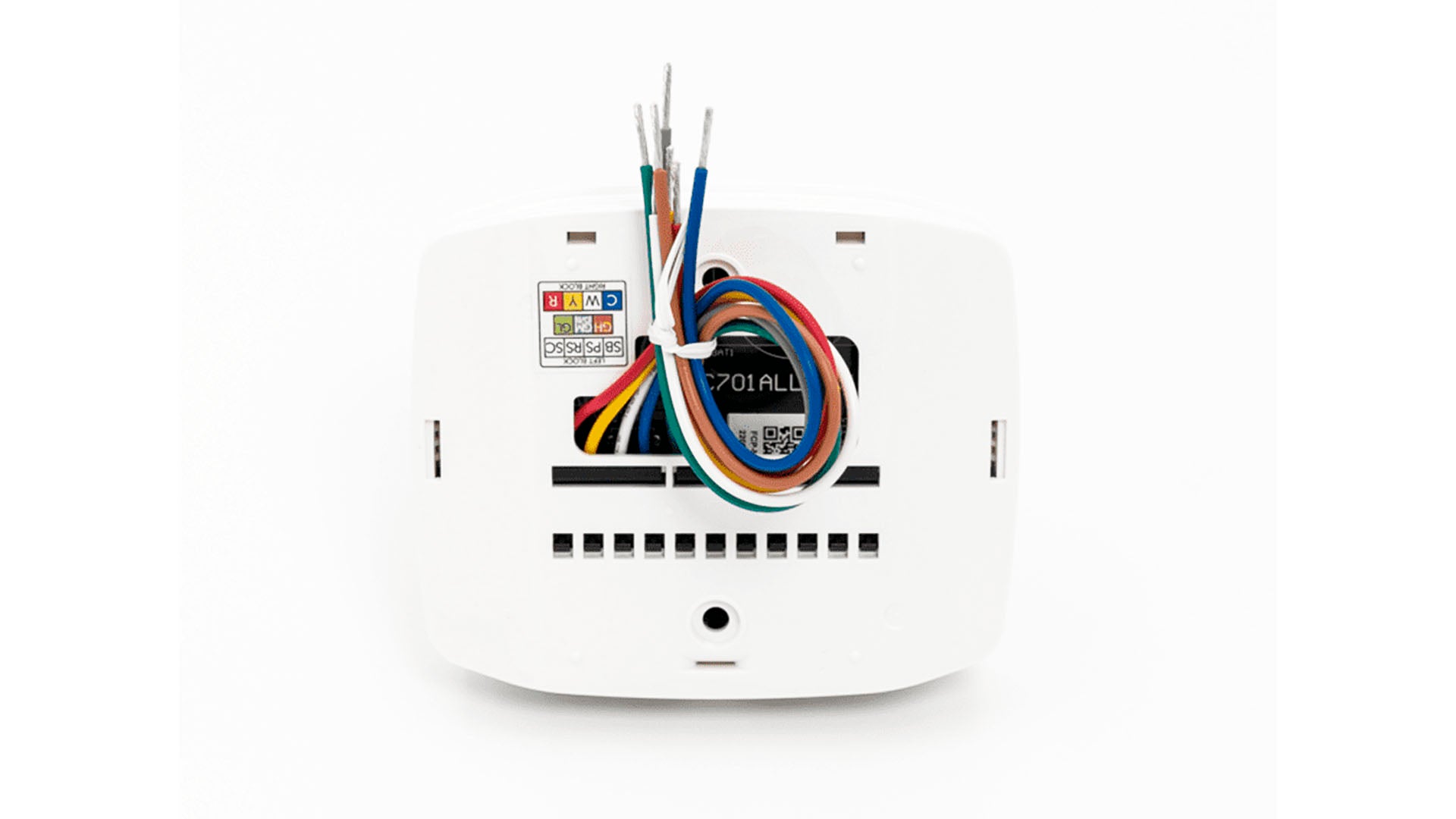

This thermostat ships with pre‑installed lead wires, four mounting screws, one lock screw, a trim plate, and a wire label—so you can complete most installations in minutes.

Preset Configuration Profiles

It includes 20 pre‑set installer and user profiles, allowing rapid configuration for a variety of system types without manual programming.

Technical Specifications

  • Item: Thermostat
  • Battery Type: Coin Cell Battery
  • Humidification Control: No
  • Temperature Limiting: Yes
  • Control Type: Push Button
  • Backlit Screen: Yes
  • Thermostat Type: Low Voltage
  • Terminal Designations: C, GH, GL, GM, PS, R, RS, SB, SC, W, Y
  • Overall Depth: 1 in
  • Temperature Sensitivity: +/-1 Degrees F; +/-2 Degrees F
  • Backlit Screen Color: Blue
  • Electrical Connection Type: Screw Terminals
  • Battery Backup: Yes
  • Includes: Mounting Hardware, Pre-Installed Terminal Wire, Wire Label
  • Compatible System Type: Fan Coil Unit, PTAC Thermostat
  • Changeover Type: Automatic and Manual
  • Number of Relay Outputs: 3
  • Operating Temperature Range: 14 Degrees to 122 Degrees F
  • Screen Height: 2 in
  • Temperature Scale: Celsius/Fahrenheit
  • Dehumidification Control: No
  • Number of Pipes: 2 or 4
  • Digit Size: Standard
  • System Settings: Auto-Heat-Cool-Off
  • Phase: 1
  • Dual Transformer Compatible: No
  • Maximum Operating Temperature: 140 Degrees F
  • Keypad Lockout: No
  • Housing Material: Plastic
  • Switch Action: Open or Close on Rise
  • Temperature Differential: 2-5F
  • Frequency: 60 Hz
  • Overall Height: 3 1/4 in
  • Standards: CSA STD E60730-1; E60730-2-9, Mexico NOM-001-SCFI-2018; NOM-024-SCFI-2013, UL STD 60730-1; 60730-2-9, ETL/cETL Listed, Mexico NOM
  • Minimum Operating Temperature: -4 Degrees F
  • Screen Width: 2 in
  • Minimum Control Temperature: 45 Degrees F
  • Display Type: Digital
  • Maximum Control Temperature: 95 Degrees F
  • Number of Zones: 1
  • Includes Positive Off: Yes
  • Temperature Control Range: 45 Degrees to 90 Degrees F, 60 Degrees to 95 Degrees F
  • Includes Batteries: Yes
  • Switch Type: NC/NO
  • Differential Type: Adjustable
  • Temperature settings per day: Manual Adjust
  • Temperature Readout: Yes
  • Temporary Temperature Hold: Yes
  • Programming Capability: Not Programmable
  • Mounting Direction: Horizontal
  • Shape: Rectangle
  • Fan Settings: Hi-Med-Low-Auto-Off
  • Voltage: 24 to 30V AC
  • Overall Width: 4 in
  • Sensor Location: Remote
  • Housing Color: White
  • Application: Heat and Cool
  • Country of Origin (subject to change): China

Additional Information

Energy‑Saving Features

Moreover, the setback temperature feature and filter‑change reminder help reduce energy use and maintenance costs by ensuring systems run only when needed.

Compact & Robust Design

Measuring 3.27 × 3.94 × 0.98 inches and weighing just 4.9 oz, its compact form factor fits neatly on any junction box or wall, while ETL/cETL listing guarantees safety and durability.

The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications, consult the local Johnson Controls office or representative. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
