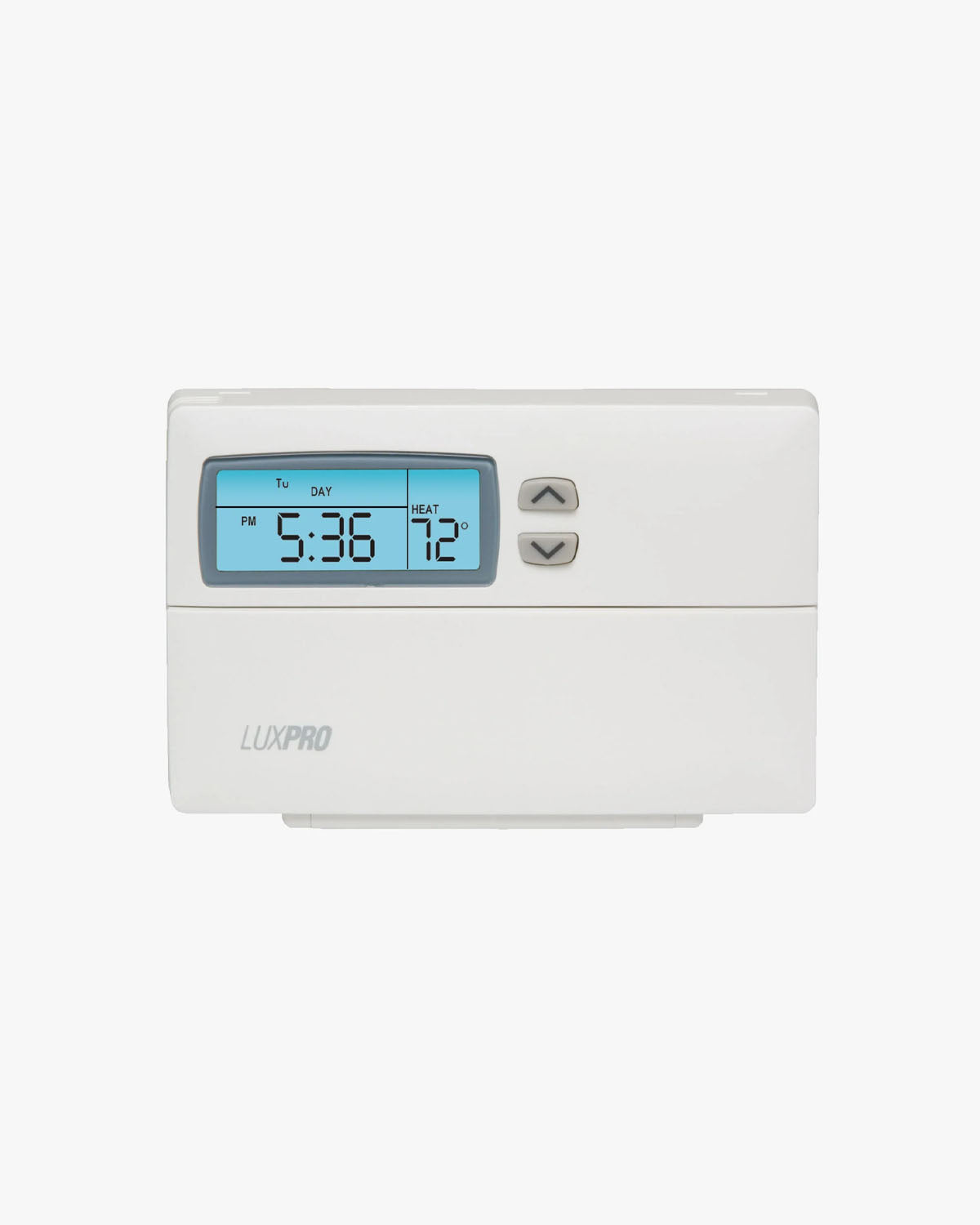

LUX Pro PSP511LC Programmable Thermostat (1 Stage Heat/ 1 Stage Cool), 5/2 Programming

Contractor grade – when basic features and great value are the requirements.

$31.99
Shipping calculated at checkout.
Just 1 left. Order soon!
Spend $50.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

Free shipping on orders $50+ to the lower 48 states. Alaska, Hawaii, Puerto Rico and U.S. territories ship at standard rates.

Guaranteed safe checkout

Product Description

  • Programmability: 5-2 Day Programmable
  • Application: Gas, Oil or Electric; Heat Pump
  • Color: White
  • User Interface: Soft Key
  • Power Method: Battery or Hardwired
  • Stages: 1 Heat/1 Cool
  • Mounting: Horizontal

Features

  • Energy Star certified
  • Separate programs for weekdays and weekends
  • Preprogrammed - up to 4 programs per day
  • Separate programs for heating and cooling
  • Either system powered with battery backup or battery powered
  • Separate weekday and weekend programming
  • Easily reprogrammed with LUX Programming Dial
  • Large Liquid crystal display
  • 5 minute air conditioning compressor delay
  • Temporary and constant temperature override
  • Total isolation between system power and thermostat

Additional Information

  • Programmable
  • Dual powered: system or battery
  • Pre-programmed adjustable settings
  • 5-year limited warranty

Compatible With

  • Most single stage 24v gas, oil, electric heating and air conditioning systems including single stage heat pumps
  • 2 wire hydronic systems
  • Millivolt systems
  • Hydronic air handlers
View full details
LUX Pro PSP511LC Programmable Thermostat (1 Stage Heat/ 1 Stage Cool), 5/2 Programming

LUX Pro PSP511LC Programmable Thermostat (1 Stage Heat/ 1 Stage Cool), 5/2 Programming

$31.99
At a Glance

Product Highlights

Technical Specifications

Full specifications

  • Replaces : TX500, TX505, and PSP500 series.
  • Dimensions: 4-1/2" wide x 3-1/4" tall x 1-1/4" deep.
  • Electrical Ratings: 1-1/2 AMPS at 24v AC. Requires 2 AA batteries (included).
  • Temperature Differential: + or - 1¦ factory preset differential adjustable from 1/4°F to 2-1/4°F.
  • Temperature Control Range: 45°F to 90°F (7°C to 32°C) - Celsius and 12/24 hour time capable.
  • Compatibilities : 2-5 wire forced air systems, 2 wire hydronic systems, and hydronic air handling systems.
  • Terminals: G, Y, W, RH, RC. Solid pin connectors. Allow usage with both 24v and millivolt equipment.
  • Program Settings: 4 preset programs per day heating and cooling. All may be easily reprogrammed in 1o and 15 minute increments with LUX Programming Dial.
  • Circuit Protection: Circuit protection is built-in, no isolation relays required.
  • Compressor Protection: Built-in 5 minute time delay.
  • Optional Wall Plate: Decorative wall plate is available for thermostat. 6-1/2"W x 4-3/4"H.
