Robertshaw 705-402 Actuator for 700 Series Gas Valves

Name: Robertshaw 705-402 Actuator for 700 Series Gas Valves
Brand: SPLYPRO
SKU: 13-0143
Price: 114.26 USD
Availability: InStock

The 705-401 and 402 operators are designed to allow field conversion of 700 and 710 Series manual gas valves to wall thermostat control. The 705-401 and 705-402 operators will operate at either 24 VAC or 12 VDC.

$114.26

Just 8 left. Order soon!

Spend $99.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

We’re proud to offer free shipping on qualifying orders within the continental U.S. on orders of $99 or more:

Remote Locations: Unfortunately, we do not offer free shipping to remote areas (including Alaska, Hawaii, Puerto Rico, and outlying territories) due to increased carrier costs. Standard shipping rates will apply.

Shipping zones are calculated automatically at checkout based on your delivery address.

Product variants

Quantity

I agree with the Terms and Conditions.

This is a demonstration store. You can't purchase this product.

Guaranteed safe checkout

Trusted Shipping Carriers

Product Description

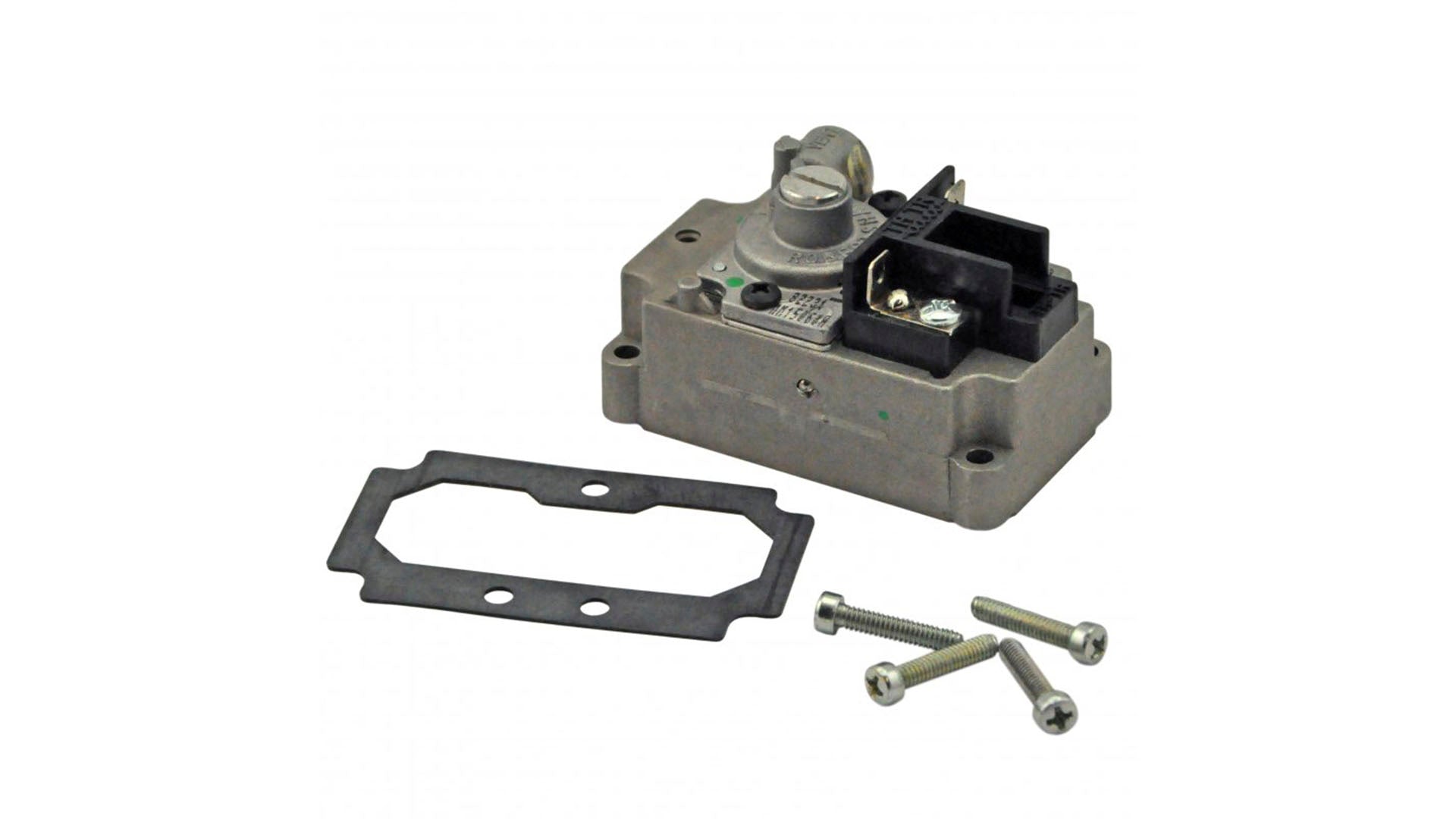

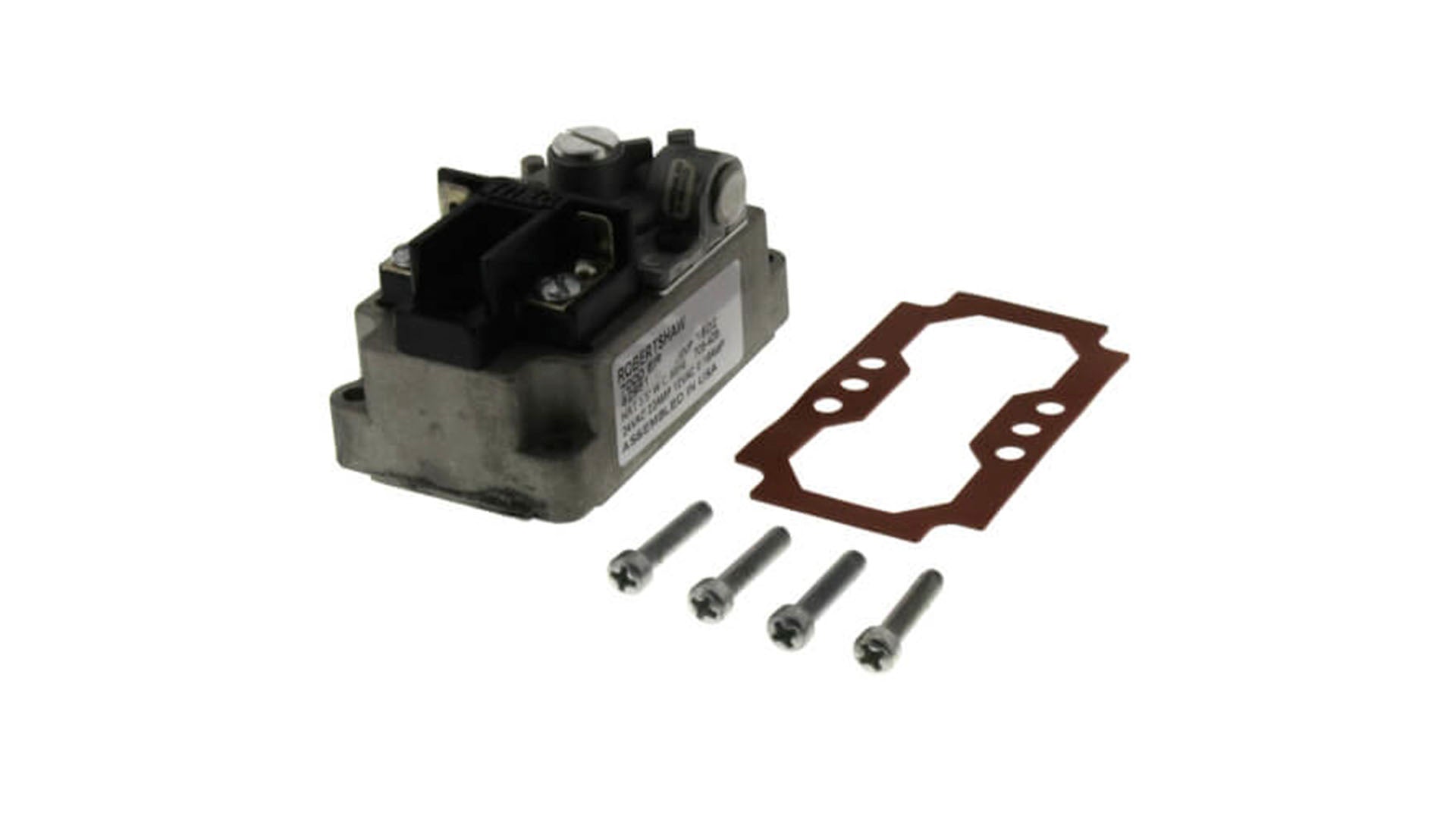

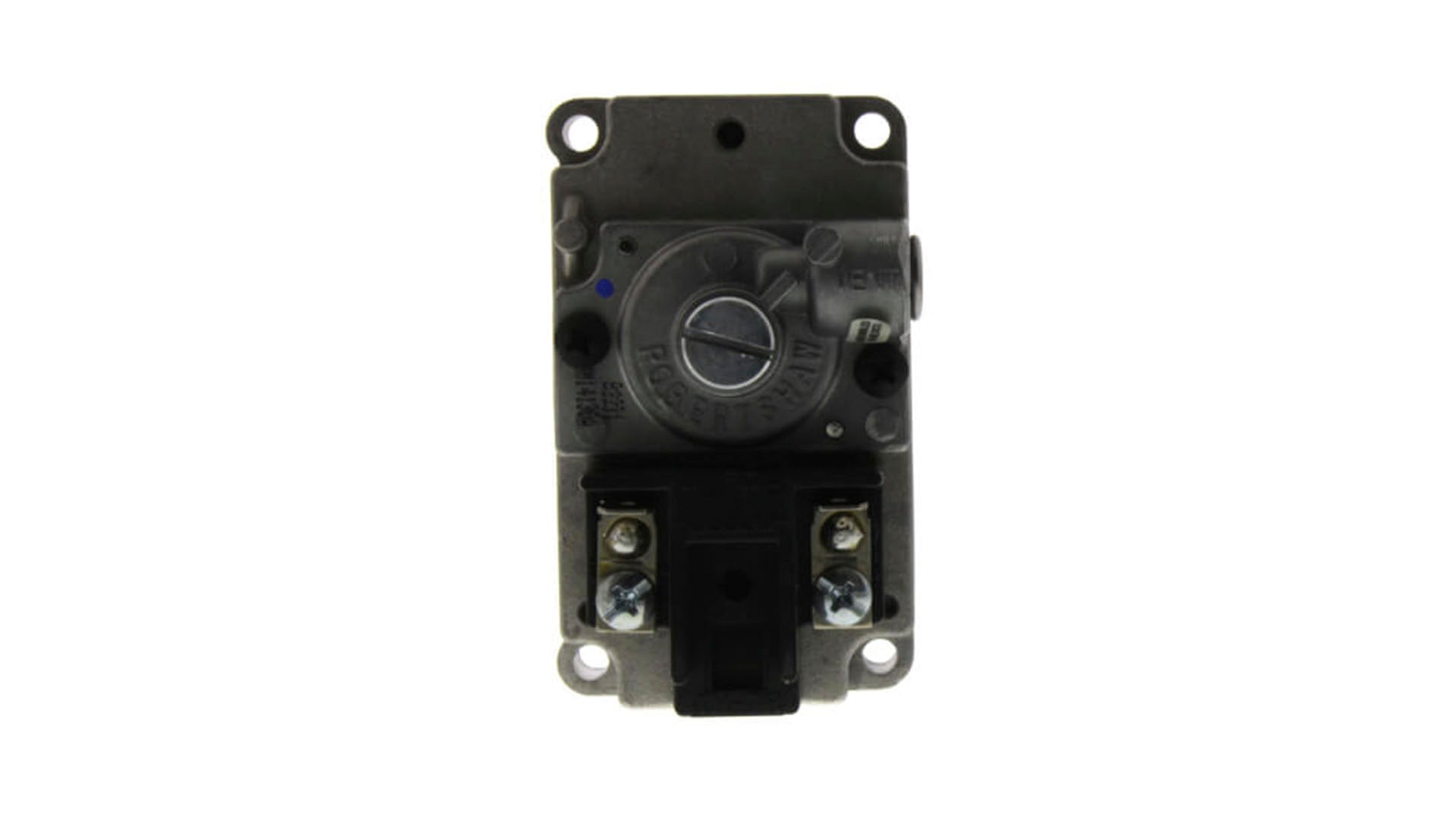

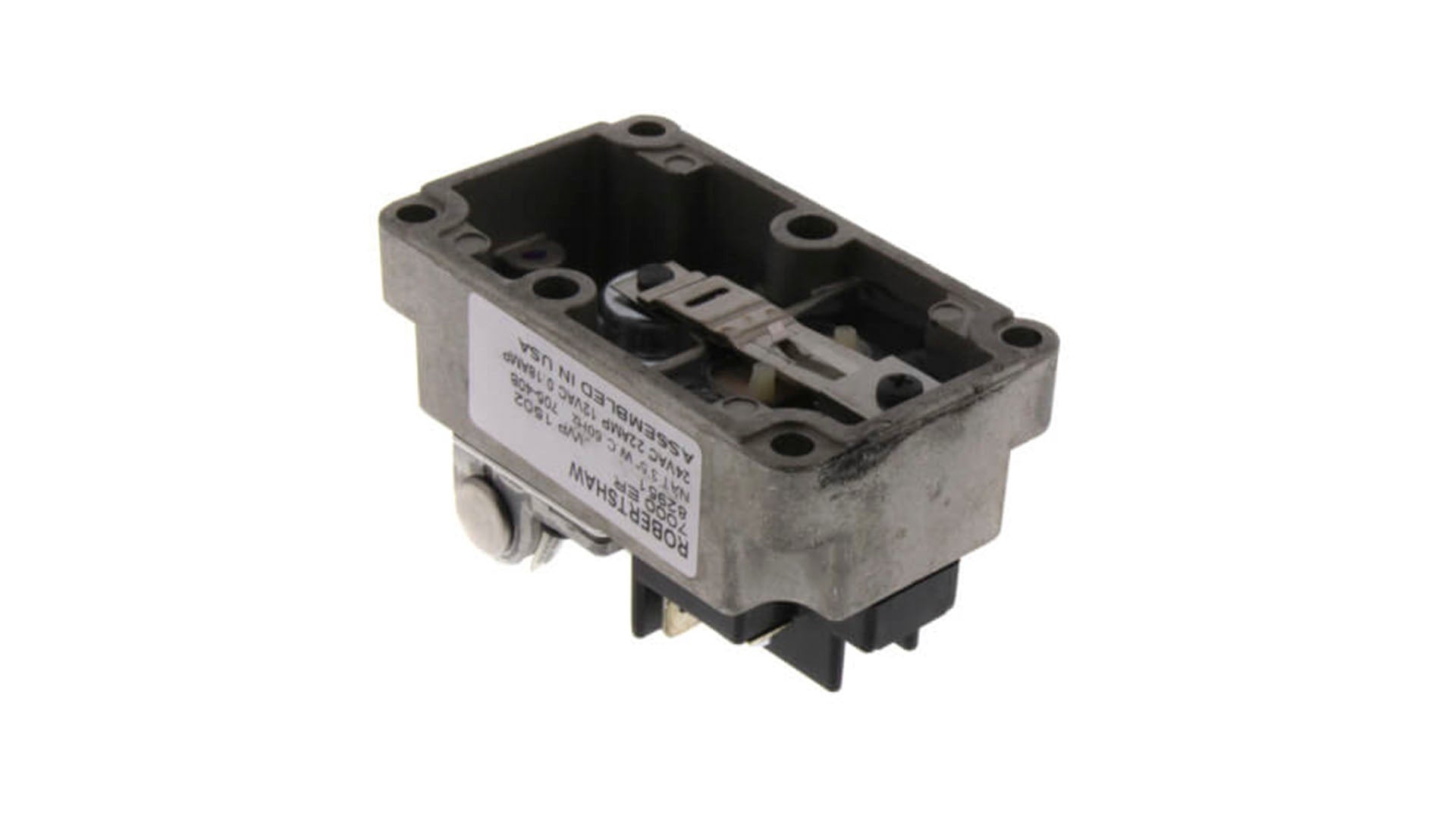

Robertshaw 705-402 Actuator for 700 Series Gas Valves 12V DC / 24V AC

The 705-401 and 402 operators are designed to allow field conversion of 700 and 710 Series manual gas valves to wall thermostat control. The 705-401 and 705-402 operators will operate at either 24 VAC or 12 VDC. The operators are also replacements for specific 700-400 Series gas valve operators. Operator kits are available with and without a 3.5" W.C. pressure regulator installed (see ordering chart) and includes a new gasket and mounting screws.

Upgrade your HVAC system with the Robertshaw 705-402 Actuator, designed for 700 Series Gas Valves. Enjoy professional-grade durability at unbeatable prices. Ideal for HVAC contractors seeking reliable, cost-effective replacements.

Applications:

Commercial gas valve systems
HVAC maintenance and repairs
Retrofit projects for 700 Series valves

Technical Specifications

Series Application: 12V DC/24V AC Actuator
Factory Part Number: 7000ER
Pressure Regulation: 3.5" WC
Block Color: Black
Electrical Rating: 24V AC, 0.2 Amps|12V DC, 0.18 Amps
Gas Type: Natural
NEC: Class 2
Ambient Temperature: -40°F to 175°F (-40°C to 80°C)
Temperature Range: NA
Country of Origin (subject to change): Mexico

Additional Information

Restrictions and Compliance

Warning
Do not use on 700-800 Series Bleed Gas Controllers (7000GO). Valve will not function properly, and an unsafe condition will exist.

NOTE: Always use a new gasket and mounting screws when replacing the valve operator.

Uni-Line® and Robertshaw® are trademarks of Robertshaw, its subsidiaries and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners.
