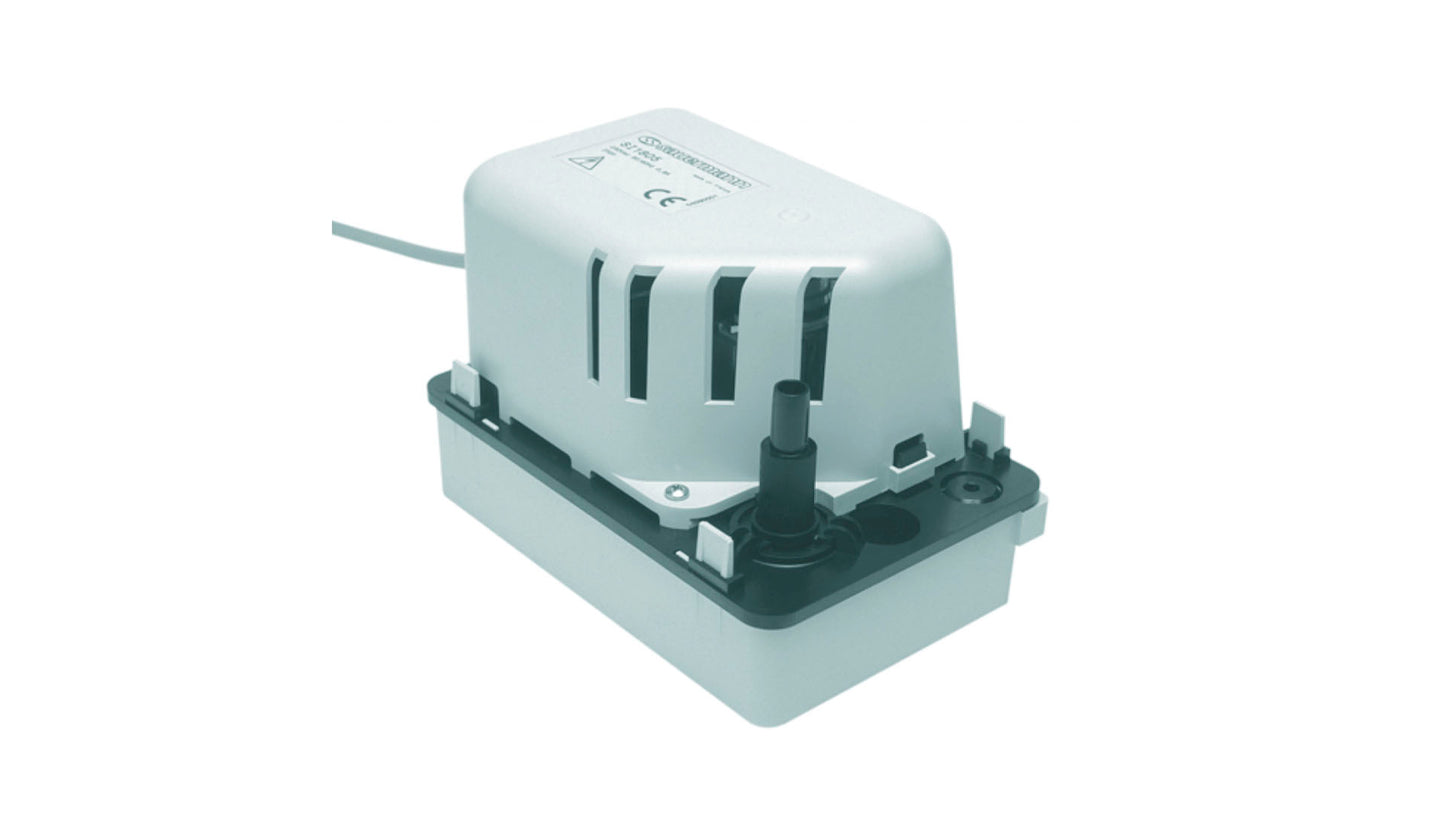

Sauermann SI-1805 Centrifugal Tank Pump

The SI 1805 pump is designed to be easily installed whatever the layout of the premises. Capable of evacuating up to 500 l/h, the SI 1805 pump is suitable for air conditioning units and industrial refrigeration displays.

$71.23
Just 7 left. Order soon!
Spend $99.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

We’re proud to offer free shipping on qualifying orders within the continental U.S. on orders of $99 or more:

  • Remote Locations: Unfortunately, we do not offer free shipping to remote areas (including Alaska, Hawaii, Puerto Rico, and outlying territories) due to increased carrier costs. Standard shipping rates will apply.

Shipping zones are calculated automatically at checkout based on your delivery address.

This is a demonstration store. You can't purchase this product.

Guaranteed safe checkout

Trusted Shipping Carriers

Product Description

Sauermann Si-1805 Centrifugal Tank Pump

The SI 1805 pump is designed to be easily installed whatever the layout of the premises. Capable of evacuating up to 500 l/h, the SI 1805 pump is suitable for air conditioning units and industrial refrigeration displays. Strong, the SI 1805 tolerates charged, high temperature and acidic condensates (pH>3.4) produced by gas condensing boilers.

High Performance

  • Can discharge condensates up to 5.4 m.
  • Up to 500 l/h, for shorter running time.
  • Low sound level – quiet operation.

Versatile

  • Easily removable tank and reversible pump, to allow mounting rather on the left or on the right of the application and choosing the side of the water exit.

Easy Hydraulic Connection

  • New quarter turn easily removable check valve, designed to facilitate Ø int. 10 mm (3/8”) hose plug in.
  • 2 inlet holes Ø 24 and 21 mm

High Resistance

  • Oil and acid-resistant float.
  • Mechanical structure resistant to shocks.

Features and Benefits

  • Can endure acidic condensate pH > 2.5
  • Oil & acid-resistant flow
  • Low sound level: ≤ 45 dBA
  • Easily removable tank for simple maintenance
  • Discharges condensate up to 23'

Applications

  • Column air conditioning units
  • Multi cassettes
  • Ducted units
  • Gas condensing boilers
  • High efficiency gas furnace
  • Refrigerated display cabinets
  • Evaporators

Technical Specifications

  • Item: Centrifugal Tank Pump
  • Max. Flow Rate: 500 l/h
  • Max. Discharge Head: 5.4 m
  • Max Pressure: 5.8 m (flowrate =0)
  • Sound level in application at 1m(3.3ft): ≤ 47 dBA (Measured in Sauermann acoustic lab, pump operating with water)
  • Mains Supply: 230V~ 50/60Hz - 90 W
  • Detection Levels ON: 32mm, OFF: 25mm, Safety: 39mm
  • Safety Switch: NC 4 A résistif – 250V
  • Max. Condensate Temperature: 65°C, 80°C in short peak
  • Max. Condensate Acidity: pH > 3.4 (Gas condensing boilers)
  • Thermal Protection (overheating): 120°C (auto-reset)
  • Operating Condition: 30%: 3s ON – 7s OFF
  • Protection: IP20
  • Safety Standards: CE & EAC
  • RoHS Directive: Compliant
  • WEEE Directive: Compliant
  • Pump Dimensions: L195 x l 130 x H 132 mm
  • Pump Dimensions: L195 x l 130 x H 132 mm
  • Weight (including box): 2.0 kg
  • Country of Origin (subject to change): United States

Additional Information

Kit Content

  •  One-piece centrifugal pump with tank (0.5L).
  • Integrated barb end check valve Ø ext. 10 mm (3/8”).
  • Power cord (1m, Bare ends – L, N, G).
  • Safety switch cord (1m, bare ends).
  • Ø10 mm to 6 mm (3/8'' to ¼'') adaptor for clear tubing.
  • 2 screws + 2 plugs.

Restrictions and Compliance

  • WARNING: Risk of electric shock. This pump is supplied with a grounding cable and a grounding attachment plug. To reduce the risk of electric shock, ensure that the pump is connected only to a suitable grounding device.

Product Bulletin Download Technical Data Sheet Download 3D File Download
