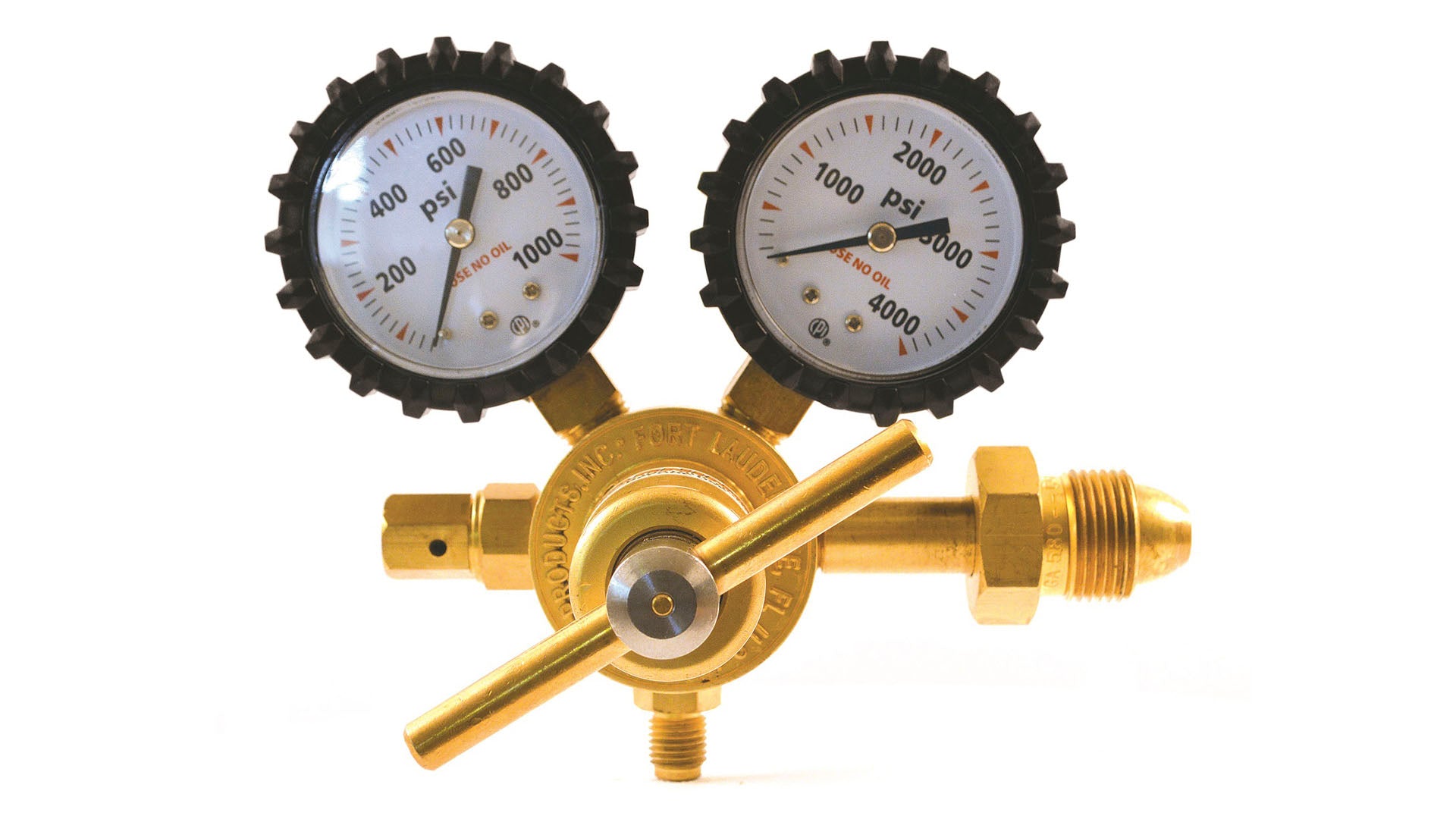

Uniweld RHP800 Nitrogen Regulator

Regulators for use with Nitrogen or CO2 (with optional F36 adaptor) that have been specifically designed for purging and pressure testing.

$125.92
Spend $99.00 to FREE SHIPPING

💸 BEST PRICE
We back all products with a 1-year guarantee.

📦 Free Shipping Policy

We’re proud to offer free shipping on qualifying orders within the continental U.S. on orders of $99 or more:

  • Remote Locations: Unfortunately, we do not offer free shipping to remote areas (including Alaska, Hawaii, Puerto Rico, and outlying territories) due to increased carrier costs. Standard shipping rates will apply.

Shipping zones are calculated automatically at checkout based on your delivery address.

This is a demonstration store. You can't purchase this product.

Guaranteed safe checkout

Trusted Shipping Carriers

Product Description

Uniweld RHP800 Nitrogen Regulator

Regulators for use with Nitrogen or CO2 (with optional F36 adaptor) that have been specifically designed for purging and pressure testing. Large “T” handle with stainless steel pressure adjusting screw and bushing prevent galling.

Features and Benefits

  • Piston actuated seat for durability.
  • Easy-to-read 2″ gauges with steel case construction with polycarbonate lens.
  • Protective Rubber Gauge Boots.
  • Porous metal inlet filter.
  • Fine mesh filter screen between inlet and seat.
  • T-handle for ease of pressure adjustment.
  • For all your testing and evaluating needs.

Technical Specifications

  • Item: Specialty Gas Regulator
  • Stages: Single Stage
  • Delivery Pressure Range: 50 to 800 psi
  • Outlet Connection: 1/4 in Flare M
  • Regulator Supply Type: Cylinder
  • Regulator Capacity: Light to Heavy Duty
  • Diaphragm Material: Neoprene
  • Application: High Pressure
  • Gauges Delivery Pressure: 1000 psi
  • Max. Inlet Pressure: 3,000 psi
  • Standards: UL Listed
  • Outlet Connection Type: Flared
  • Outlet Connection Gender: Male
  • Inlet Connection Type: NGO
  • (Gas Type - Subhead): Argon, Helium & Nitrogen
  • Inlet Connection Size: 0.965"-14
  • (inlet + outlet + max outlet pressure): (CGA 580 - 0.965"-14 - NGO - Male - Right Hand inlet) - ( 1/4 in - Male - Flared - 800 psig
  • Outlet Pressure (Maximum): 800 psig
  • Gauge Diameter: 2 in
  • Inlet Pressure (Maximum): 3,000 psig
  • Outlet Pressure (Minimum): 50 psig
  • Inlet Connection Gender: Male
  • Gas Service: Nitrogen
  • Regulator Application: General Purpose
  • Inlet Connection: CGA 580
  • Gauge Size: 2 in
  • Delivery: 50 to 800 psi
  • Includes: Piston Actuated Seat for Durability, Steel Case Construction with Polycarbonate Lens
  • Overall Length: 9-1/8"
  • Supply Pressure Gauge: 0 to 4000 psi
  • Series: RHP
  • Body Material: Brass
  • Inlet Thread Direction: Right Hand
  • (outlet): (1/4 in - Male - Flared)
  • Outlet Connection Size: 1/4 in
  • Number of Stages: Single Stage
  • Body Finish: Polished
  • CGA Number: CGA 580
  • Maximum Gauge Outlet Pressure: 4,000 psig
  • (inlet): (CGA 580 - 0.965"-14 - NGO - Male - Right Hand inlet)
  • Compatible Gas Type: Nitrogen
  • Control Type: T-Handle
  • Regulator Series: RHP
  • Country of Origin (subject to change): China

Additional Information

Product Bulletin Download
